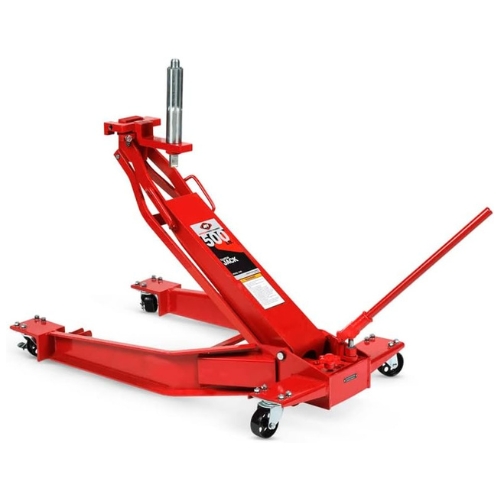

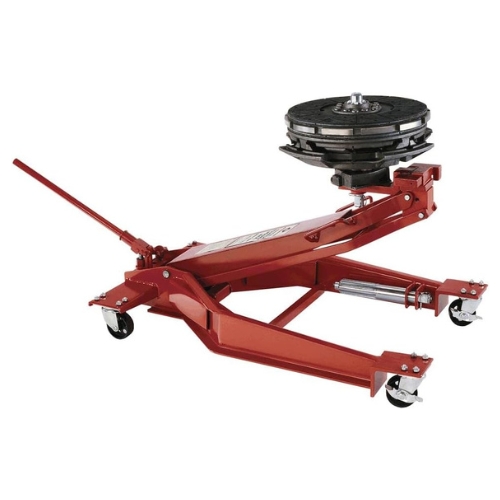

AFF 3700 Truck Clutch Jack, Heavy-Duty Steel, 500 lb Capacity, 360-Degree Pump Handle

AFF 3700 Truck Clutch Jack, Heavy-Duty Steel, 500 lb Capacity, 360-Degree Pump Handle

• The AFF 3700 Truck Clutch Jack is a heavy-duty steel tool designed for one-person removal, installation, and transport of truck clutches. With a 500 lb capacity, pivoting clutch head, and open-leg frame, it allows clutch assemblies to be built vertically and then positioned horizontally for mounting under large vehicles.
• Features:

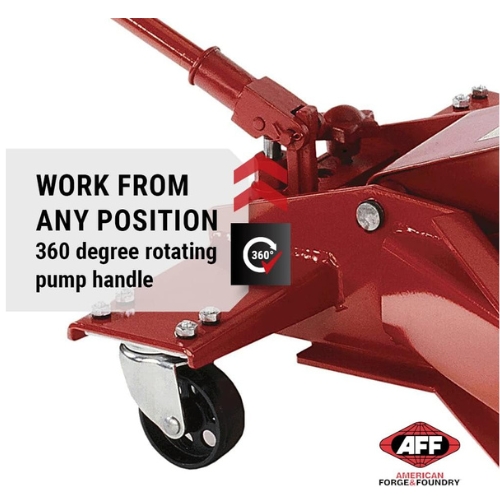

  • 360-degree pump handle enables operation from any position, including tight clearance areas.

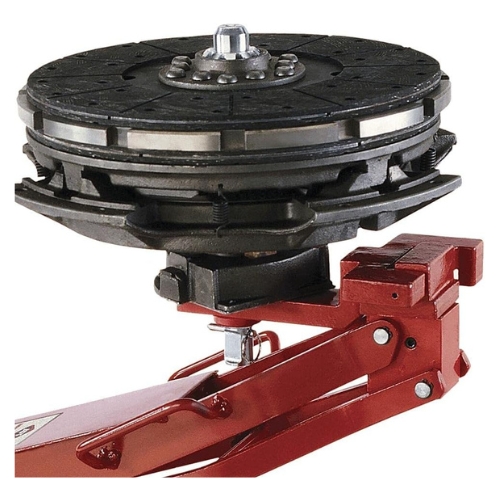

  • Clutch head pivots side-to-side and rotates 360 degrees for precise alignment during installation.
  • Includes two splined alignment shafts (2-inch OD x 1.18-inch pilot and 1.75-inch OD x 0.938-inch pilot) stored in the frame legs.

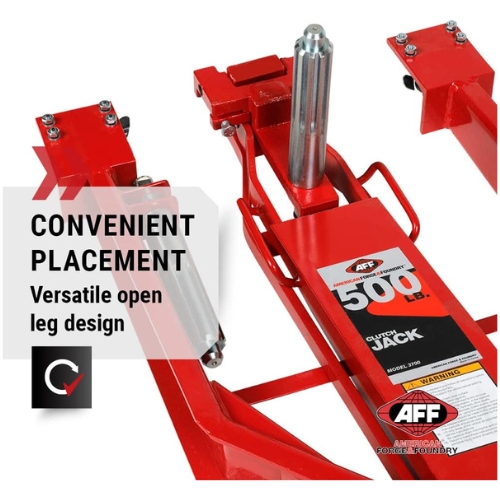

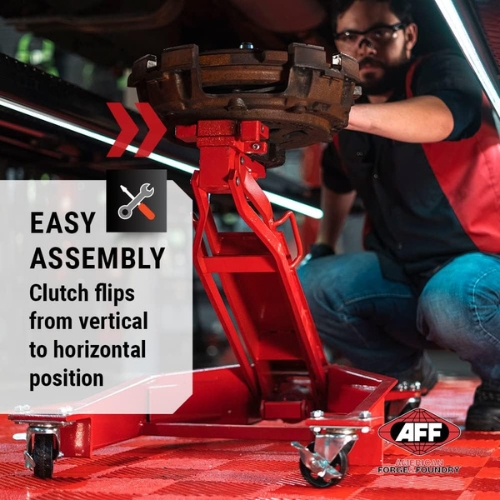

  • Open-leg design allows vertical clutch assembly before horizontal positioning under vehicle.
  • Heavy-duty steel construction with large swivel casters for strength and mobility.
• Specifications:
  • Manufacturer: AFF (American Forge & Foundry)
  • Part Number: 3700
  • Material: Steel

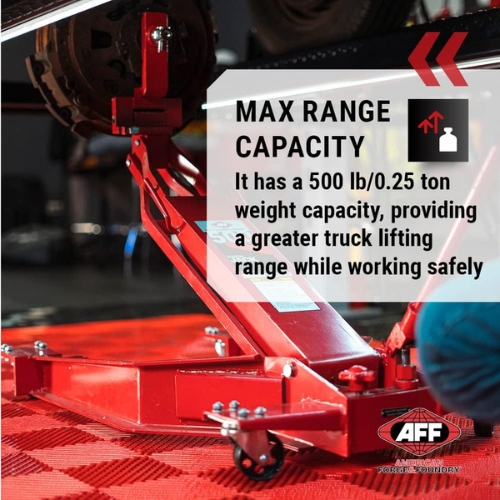

  • Capacity: 500 lbs (1/4 ton)
  • Minimum Height: 13 inches
  • Maximum Height: 39 inches
  • Frame Length: 36.5 inches
  • Frame Width: 22 inches
  • System Compatibility/Application: Designed for handling truck clutches, flywheels, drive shafts, starter motors, auxiliary cases, differentials, brake drums, and camel-back springs in professional service shops
• The AFF 3700 may also be referred to as a heavy-duty truck clutch jack, 500 lb clutch handling jack, or steel clutch alignment tool.

The AFF 3700 Truck Clutch Jack is built with durable steel construction, pivoting clutch head, and a versatile 360-degree pump handle for maximum control. It provides mechanics with a safe and efficient way to remove, transport, and install truck clutches and related heavy components.

Q: What is the minimum clearance height for this clutch jack?
A: The minimum height is approximately 13 inches, allowing it to fit under vehicles with low ground clearance.

Q: What alignment shafts are included with the AFF 3700?
A: It includes two splined alignment shafts: one 2-inch OD x 1.18-inch pilot and one 1.75-inch OD x 0.938-inch pilot, both stored in the jack’s frame legs.

Q: Can the pump handle be used in restricted spaces?
A: Yes, the pump handle rotates 360 degrees, making it suitable for use in confined areas and allowing easy positioning from different angles.
