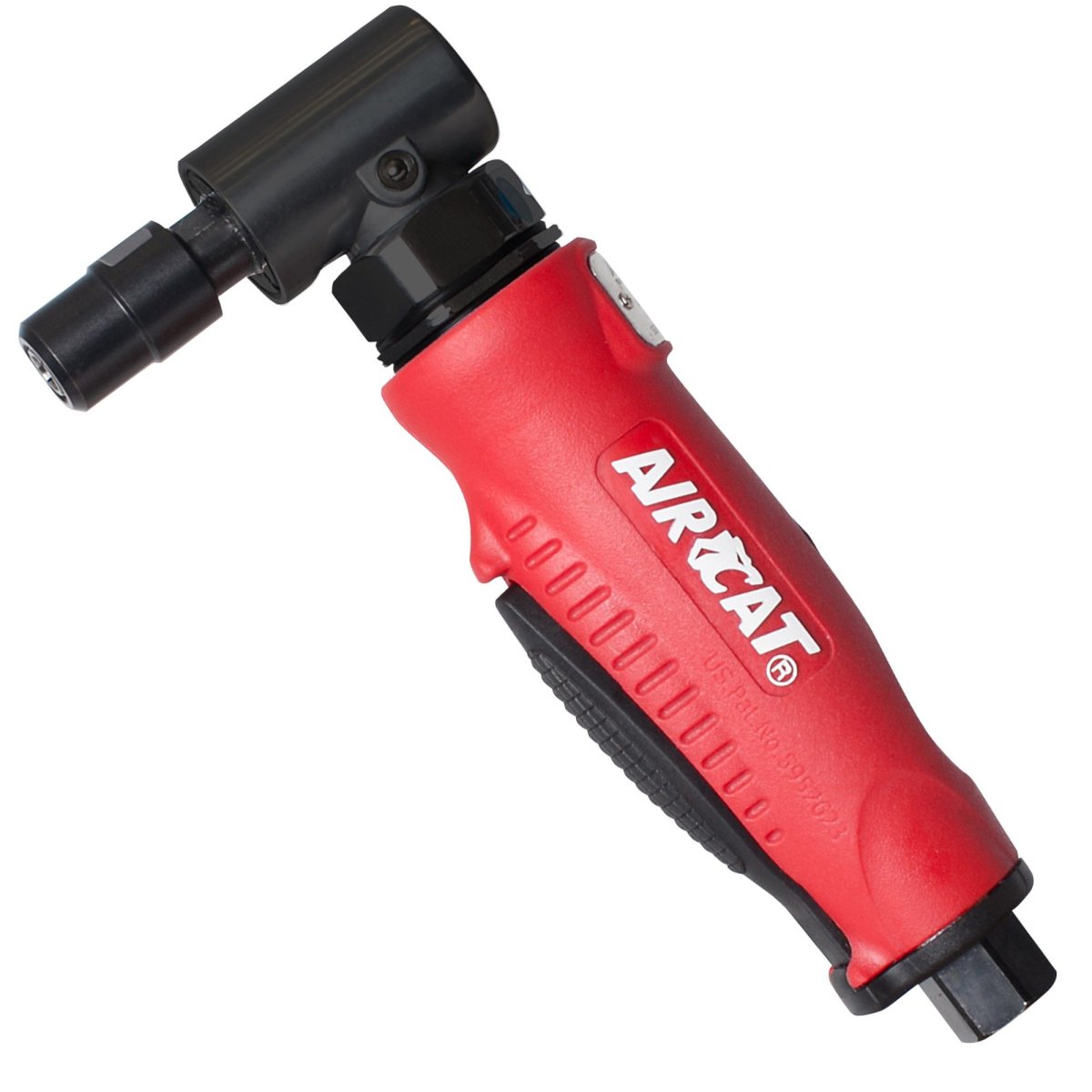

Aircat 6255 Composite Angle Die Grinder, 0.4 Horsepower, 1/4" Collet, 20000 RPM

Aircat 6255 Composite Angle Die Grinder, 0.4 Horsepower, 1/4" Collet, 20000 RPM

• Aircat 6255 is a pneumatic right-angle die grinder for blending, smoothing, porting, and deburring in confined work areas. The composite tool combines a rear exhaust layout with a compact angled grinding format for professional air tool users.
• Features:
  • Superior steel grade internal bevel gears and spiral bevel gearing for right-angle power transfer.
  • Feather trigger for speed control during grinding and deburring work.
  • Patented quiet technology rated at 82 decibels A-weighted.
  • Ergonomically designed composite housing with rear exhaust.
  • Specified air consumption is 4.2 cubic feet per minute.
• Specifications:
  • Manufacturer: Aircat
  • Part Number: 6255
  • UPC: 809084181007
  • Product Type: Composite right-angle pneumatic die grinder
  • Motor Power: 0.4 Horsepower
  • Free Speed: 20,000 revolutions per minute
  • Collet Size: 1/4"
  • Gear Type: Spiral bevel
  • Exhaust Type: Rear exhaust
  • Air Inlet: 1/4" NPT/BSP
  • Recommended Hose Size: 3/8"
  • Air Consumption: 4.2 cubic feet per minute
  • Noise Level: 82 decibels A-weighted
  • Tool Length: 7 Inches
  • Tool Weight: 1.10 Pound
  • Quantity: 1 composite angle die grinder
• The Composite Angle Die Grinder can also be referred to as right-angle die grinder, composite die grinder, pneumatic die grinder, 1/4" collet die grinder, and air-powered deburring tool.

Florida Pneumatic Manufacturing Corporation supplies AIRCAT pneumatic tools for automotive and industrial applications, with product categories including impact wrenches, ratchets, grinders, cut-off tools, hammers, sanders, polishers, spray guns, and specialty tools.

Q: What compressed air setup is specified for the Aircat 6255?
A: The tool has a 1/4" NPT/BSP air inlet, a 3/8" recommended hose size, and 4.2 cubic feet per minute air consumption.

Q: What gearing and exhaust configuration does this die grinder use?
A: The Aircat 6255 uses spiral bevel gears and a rear exhaust configuration.

Q: What control and housing features are specified for this model?
A: The grinder has a feather trigger and an ergonomically designed composite housing.
