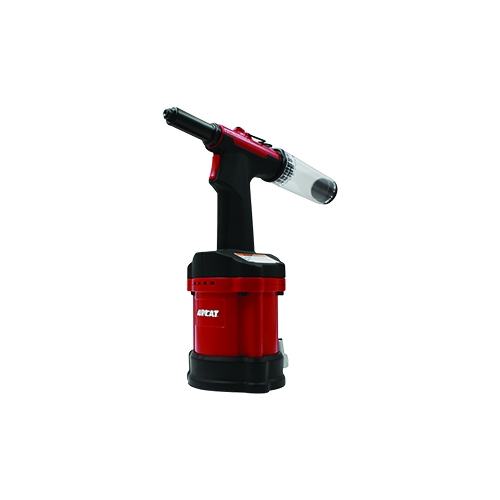

AIRCAT 6420 Air Hydraulic Riveter, 1/4" Capacity, 3,700 lb Pull Force

AIRCAT 6420 Air Hydraulic Riveter, 1/4" Capacity, 3,700 lb Pull Force

• This tool is designed to handle structure rivets in all materials. It includes a convenient On/Off switch, easy adjustable head and nut, and composite comfort grip.
• Features:
  • Designed to handle structure rivets in all materials.
  • Convenient On/Off switch.
  • Easy adjustable head and nut.
  • Composite comfort grip.
• Specifications:
  • Manufacturer: AIRCAT
  • Part Number: 6420
  • UPC: 00722470358091
  • Product Type: Air hydraulic riveter
  • Power Source: Pneumatic
  • Maximum Capacity: 1/4" structural rivets in all materials
  • Nosepieces Equipped: 3/16", 1/4", 3/16" Monobolt, 1/4" Monobolt
  • Pull Force: 3,700 lb
  • Stroke Length: 63/64"
  • Operating Air Pressure: 90 PSI
  • Air Inlet: 1/4" NPT
  • Minimum Hose Size: 3/8"
  • Air Consumption: 0.5 CFM
  • Tool Length: 13.00"
  • Net Weight: 5.6 lb
• The AIRCAT 6420 Air Hydraulic Riveter can also be referred to as 1/4" air riveter, air hydraulic rivet gun, pneumatic riveter, structural rivet tool, and Monobolt riveter.

AIRCAT is a Continental Tool Group brand established in 1998 that develops pneumatic power tools with reduced noise levels, maximum power and torque, and ergonomically engineered handle designs for professional air tool users.

Q: What rivet sizes are equipped with the AIRCAT 6420?
A: The equipped nosepieces are 3/16", 1/4", 3/16" Monobolt, and 1/4" Monobolt.

Q: What mandrel collection feature does this riveter use?
A: It has a patented mandrel vacuum collection system with an On/Off switch and removable collection bottle.

Q: What air supply specs apply to this riveter?
A: It operates at 90 PSI with a 1/4" NPT air inlet and a 3/8" minimum hose size.
