Airmaster EPRSM16 Low Pressure Shutter Fan, 16 inch, 115 V, 1216/765 CFM

Airmaster EPRSM16 Low Pressure Shutter Fan, 16 inch, 115 V, 1216/765 CFM

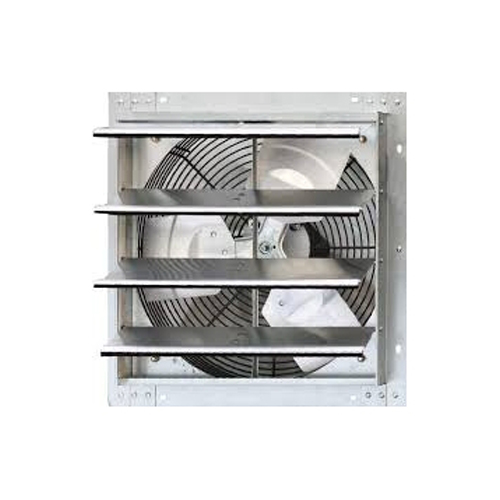

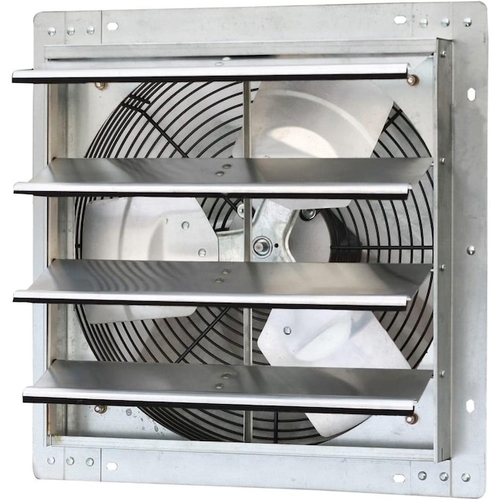

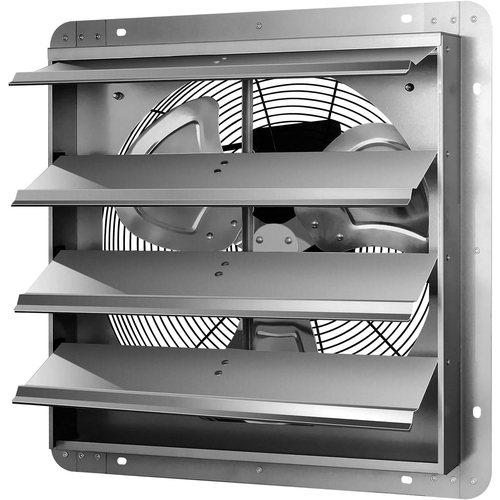

• Airmaster EPRSM16 is a 16 inch direct drive low pressure shutter fan for wall exhaust ventilation. The 115 V, 1/20 hp motor delivers 1216 CFM at 0 inch static pressure and 765 CFM at 1/8 inch. This is a standalone exhaust unit, not a replacement part.
• Features:
  • Direct drive 16 inch shutter fan provides efficient airflow for compact wall openings (1216 CFM at 0 inch SP; 765 CFM at 1/8 inch SP).
  • Totally enclosed 115 V motor helps protect against dust and debris in shop and light industrial environments.
  • Rear guard meets OSHA standards to enhance safety at the fan intake.
  • Hard wired configuration supports permanent installation through a 17 inch wall opening with a 19-1/8 inch panel size.
  • General purpose exhaust accessory for ventilation tasks; not a replacement part for a specific system.
• Specifications:
  • Manufacturer: Airmaster
  • Part Number: EPRSM16
  • Type: Direct drive low pressure shutter wall fan
  • Blade Diameter: 16 inch
  • Voltage: 115 V
  • Motor Power: 1/20 hp
  • Full Load Amps: 1.9 A
  • Airflow: 1216 CFM at 0 inch SP; 765 CFM at 1/8 inch SP
  • Sound Level: 8.0 sones at 5 ft
  • Panel Size: 19-1/8 inch square
  • Wall Opening: 17 inch square
  • Overall Depth: 9.06 inch
  • Motor Enclosure: Totally enclosed
  • Wiring: Hard wired (no cord or plug)
  • System Compatibility/Application: Standalone wall exhaust shutter fan for general ventilation; not a replacement part
• The Low Pressure Shutter Fan can also be referred to as exhaust shutter fan, low pressure shutter fan, 16 inch wall exhaust fan, direct drive shutter fan, and ventilation shutter fan.

Airmaster manufactures industrial and commercial air movement and ventilation equipment, including exhaust fans, air circulators, and specialty fans for factories, warehouses, and facilities.

Q: What airflow does the EPRSM16 deliver?
A: It provides 1216 CFM at 0 inch static pressure and 765 CFM at 1/8 inch static pressure.

Q: What wall opening and panel size are required?
A: The required wall opening is 17 inch square, and the panel size is 19-1/8 inch square.

Q: Is the unit hard wired or supplied with a plug?
A: EPRSM16 is hard wired for permanent installation.
