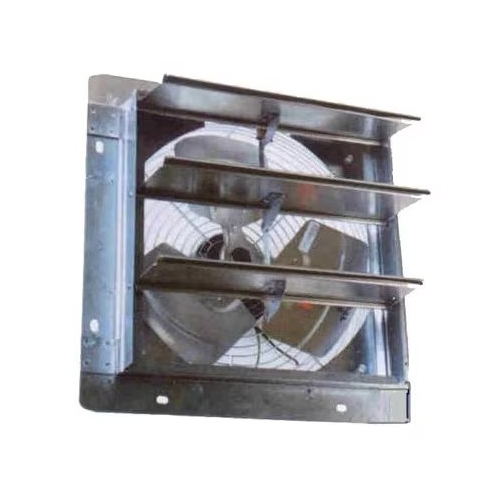

Airmaster EPRSM7 Low Pressure Shutter Fan, 7 inch, 115 V, 121/60 CFM

Airmaster EPRSM7 Low Pressure Shutter Fan, 7 inch, 115 V, 121/60 CFM

• Airmaster EPRSM7 is a 7 inch direct drive low pressure shutter fan for wall exhaust ventilation. The 115 V motor delivers 121 CFM at 0 inch static pressure and 60 CFM at 1/8 inch. This is a standalone exhaust unit, not a replacement part.
• Features:
  • Direct drive 7 inch shutter fan provides efficient exhaust airflow for compact wall openings.
  • Totally enclosed 115 V motor supports reliable operation in shop and light industrial environments.
  • Rear guard meets OSHA style safety guidelines at the intake side.
  • Hard wired configuration for permanent installation through a prepared wall opening.
  • General purpose exhaust accessory; not a replacement part for a specific system.
• Specifications:
  • Manufacturer: Airmaster
  • Part Number: EPRSM7
  • Type: Direct drive low pressure shutter wall exhaust fan
  • Blade Diameter: 7 inch
  • Voltage: 115 V
  • Airflow: 121 CFM at 0 inch SP; 60 CFM at 1/8 inch SP
  • Motor Power: 1/30 hp
  • Full Load Amps: 1.2 A
  • Sound Level: 4.8 sones at 5 ft
  • Panel Size: 11-1/8 inch square
  • Wall Opening: 8-1/2 inch square
  • Depth: 8.06 inch (approximate)
  • Motor Enclosure: Totally enclosed
  • Wiring: Hard wired (no cord or plug)
  • Alternate/Cross Reference: WFASM7; EDP 23000
  • System Compatibility/Application: Standalone wall exhaust shutter fan for general ventilation; not a replacement part
• The Low Pressure Shutter Fan can also be referred to as low pressure shutter fan, 7 inch wall exhaust fan, direct drive shutter fan, ventilation shutter fan, and Airmaster EPRSM7 fan.

Airmaster designs and supplies industrial and commercial air movement equipment for factories, warehouses, and facilities, including exhaust fans, air circulators, and specialty ventilation solutions.

Q: What airflow does the EPRSM7 provide?
A: It delivers 121 CFM at 0 inch static pressure and 60 CFM at 1/8 inch static pressure.

Q: What wall opening and panel size are required?
A: The wall opening is 8-1/2 inch square and the panel size is 11-1/8 inch square.

Q: Is the unit hard wired and does it have a totally enclosed motor?
A: Yes. EPRSM models are hard wired and use a totally enclosed motor.
