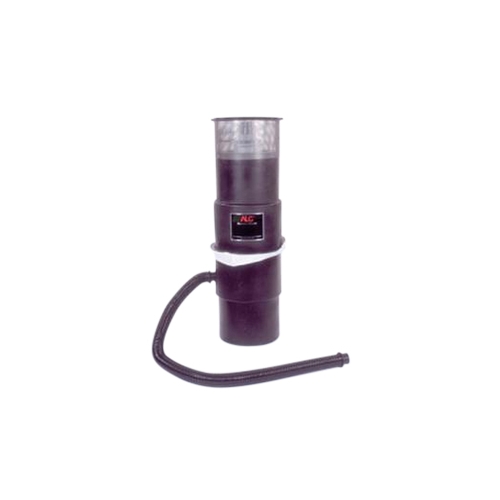

ALC 40412 Steel Dust Collector, 112 CFM, 120V AC

ALC 40412 Steel Dust Collector, 112 CFM, 120V AC

• ALC 40412 is an abrasive blasting dust collector for reducing dust inside blast cabinets during surface preparation work. The steel drum unit uses a filter bag system, motor-driven airflow, and a hose connection for cabinet dust extraction.
• Features:
  • 50 micron filter bag system rated at 95% efficiency.
  • Heavy duty steel drum design with locking clamp construction.
  • Fully enclosed motor housing with two-piece access for collector and filter maintenance.
  • 2-1/4" x 6 ft dust collector hose connects to compatible blast cabinets.
  • Recommended for ALC steel abrasive blast cabinets and adaptable to most abrasive blast cabinets with a 2-1/4" connection.
• Specifications:
  • Manufacturer: ALC
  • Part Number: 40412
  • UPC: 746340037046
  • Product Type: Abrasive blasting dust collector
  • Drum Material: Steel
  • Maximum Air Flow: 112 CFM
  • Voltage: 120V AC
  • Horsepower: 1-5/16 hp
  • Current: 11 A
  • Phase: Single
  • Frequency: 60 Hz
  • Filter Type: Filter bag
  • Filter Rating: 50 micron
  • Filter Efficiency: 95% at 50 micron
  • Hose Diameter: 2-1/4"
  • Hose Length: 6 ft
  • Drum Diameter: 15"
  • Overall Width: 15"
  • Overall Depth: 61"
  • Overall Height: 60-1/2"
  • Cord Length: 6 ft
  • Cord Type: 3-prong plug
  • Maximum Sound Level: 85 dBA
• The ALC 40412 Steel Dust Collector can also be referred to as abrasive blasting dust collector, blast cabinet dust collector, steel drum dust collector, filter bag dust collector, and sandblast cabinet dust extractor.

S&H Industries is a manufacturer and distributor of automotive, auto body, and industrial tools founded in 1955. ALC is its abrasive blasting equipment line, covering blast cabinets, pressure blasters, handheld blasters, and siphon blasters.

Q: What filter system does the ALC 40412 use?
A: It uses a 50 micron filter bag system rated at 95% efficiency.

Q: What blast cabinet connection size does this dust collector use?
A: It uses a 2-1/4" hose connection and includes a 2-1/4" x 6 ft dust collector hose.

Q: What electrical specifications are listed for this dust collector?
A: It is rated for 120V AC, single phase, 60 Hz power with 11 A current.
