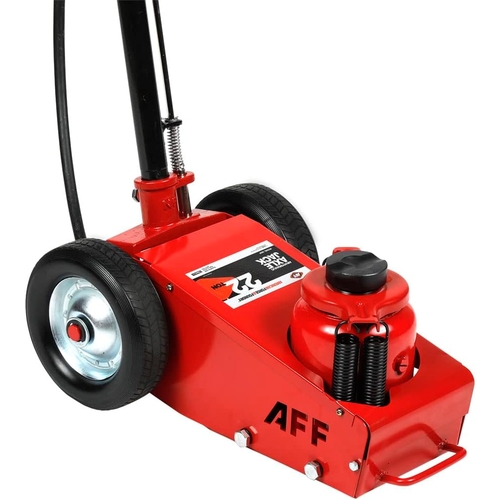

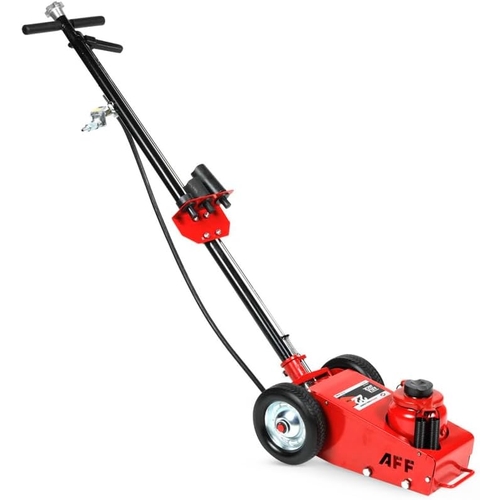

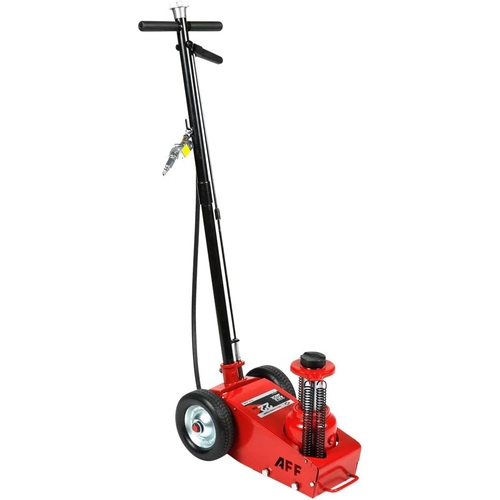

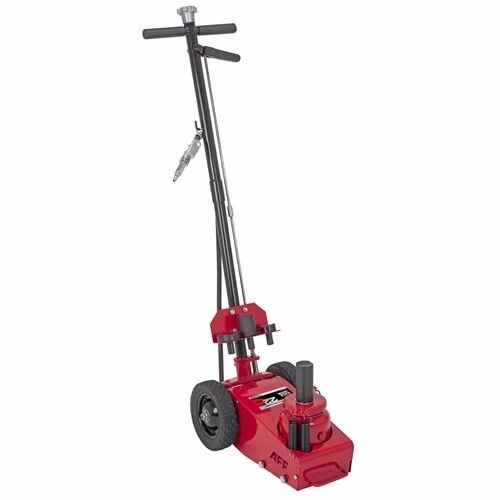

American Forge & Foundry 565F Axle Jack, Heavy Duty, 22 Ton Capacity, Single-Stage Air Assist

American Forge & Foundry 565F Axle Jack, Heavy Duty, 22 Ton Capacity, Single-Stage Air Assist

• Manufacturer American Forge & Foundry, Part Number 565F, Axle Jack, Key Specifics single-stage hydraulic with air-assist, 22 Ton capacity, includes 3-piece extension kit for added lift height
• Features:
  • 22 Ton lifting capacity for trucks, buses, trailers, rail, and heavy industrial use.

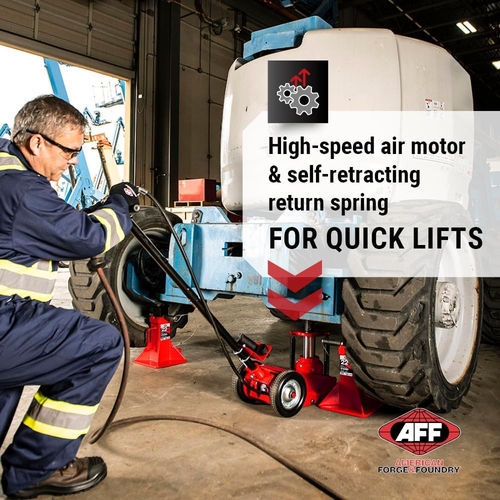

  • Air motor assist and a self-retracting spring return deliver faster lift cycles and easier lowering control.

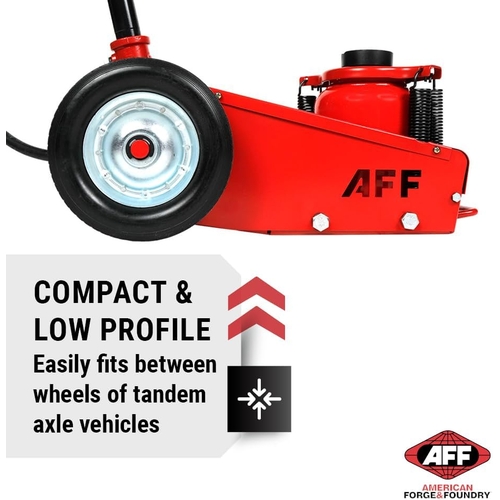

  • Low profile starting height of 8-1/4 inch allows access under tandem wheels and low lifts.

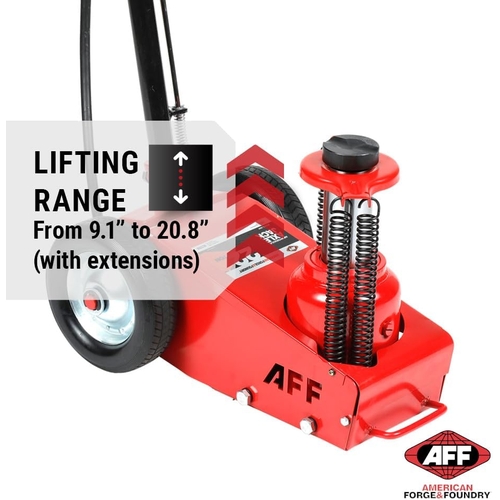

  • High lift height with extensions reaches up to 21-1/2 inch for greater travel when raising axles.

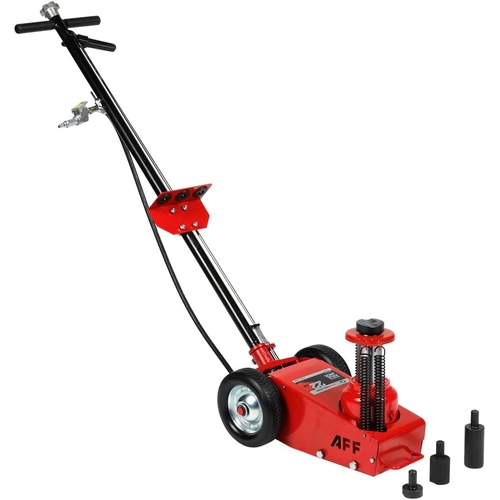

  • Includes three heat-treated extensions (3/4 inch, 2-3/4 inch, and 4 inch) to adapt to varying lift requirements.

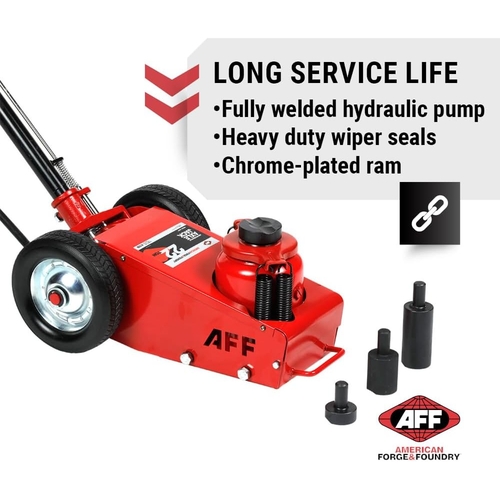

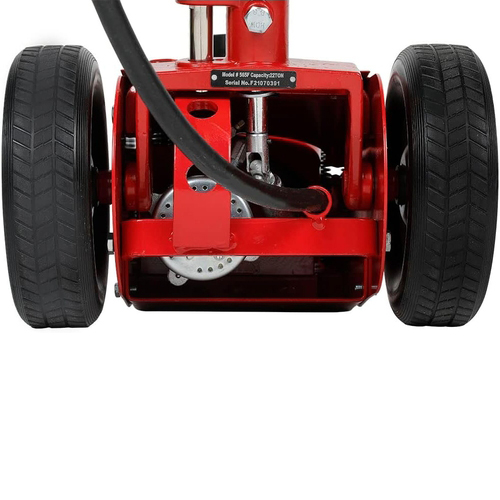

  • Large 8-inch rubber rear wheels plus heavy duty wiper seals and fully welded pump and cylinder ensure durability in harsh shop conditions.
• Specifications:
  • Manufacturer: American Forge & Foundry
  • Part Number: 565F
  • Product Type: Axle Jack
  • Capacity: 22 Ton
  • Low Height: 8-1/4 inch
  • High Height w/ Extensions: 21-1/2 inch
  • Ram Lift: 4-3/4 inch
  • Length: 20-1/4 inch
  • Front Width: 6-15/16 inch
  • Rear Width: 12-13/16 inch
  • Wheel Diameter: 8 inch
  • Weight: 99 lb
  • Quantity: Single jack unit
• Includes:
  • Extension, 3/4 inch
  • Extension, 2-3/4 inch
  • Extension, 4 inch
• The American Forge & Foundry 565F Axle Jack, Heavy Duty, 22 Ton Capacity, Single-Stage Air Assist can also be referred to as AFF 565F 22-Ton axle jack, AFF air-assist axle jack 565F, AFF extension kit jack, American Forge & Foundry 565F heavy axle jack.

American Forge & Foundry builds the 565F Axle Jack for demanding axle applications in truck, trailer, fleet, marine, and industrial work. Its air-assist feature, robust hydraulic construction, and extension kit provide strength, reach, and versatility when lifting heavy axles.

Q: What height range does this jack support with extensions?
A: The jack reaches 8-1/4 inch at its lowest, and up to 21-1/2 inch when using the included extensions.

Q: Is this jack suitable for backbone use between tandem axles?
A: Yes, its design is narrow chassis, low height, and air-assist make it suitable for tight spaces like tandem axle applications.

Q: What safety features are included with the 565F?
A: Safety features include overload bypass valve, wiper seals to protect from contaminants, large stable wheels, and air motor spring return for controlled lowering.
