American Forge & Foundry 5520B 20-Ton Air Bottle Jack

American Forge & Foundry 5520B 20-Ton Air Bottle Jack

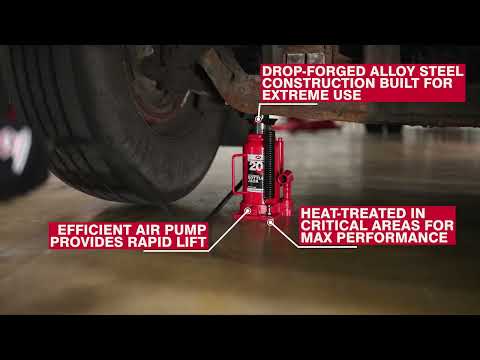

• American Forge & Foundry Air/Hydraulic Bottle Jacks are used to lift heavy-duty trucks, construction and heavy farm equipment. Both have centered pumps and rams with heat treated pistons for balance and easy positioning. Saddles are made of machine-hardened steel. Each operates at 90-180 PSI and are factory pretested to 150% of its rated capacity. They also include a safety bypass system to prevent possible damage from ram over-extension.
• Specifications
  • Air/Hydraulic Bottle Jack
  • Type: Air Assist
  • Base Length: 9.5 Inch
  • Base Width: 6.5 Inch
  • Load Rating: 20 Ton
  • Inlet Pressure Rating: 90 to 180 PSI
  • Height: 20 Inch (High), 10.5 Inch (Low)
  • Screw Extension: 3.25 Inch
  • Lift: 6-1/4 Inch
  • UPC 874015000948
• Includes Safety Bypass System
