American Forge & Foundry 3520 Bottle Jack, Heavy Duty, 20 Ton Capacity, Manual Centered Pump & Ram

American Forge & Foundry 3520 Bottle Jack, Heavy Duty, 20 Ton Capacity, Manual Centered Pump & Ram

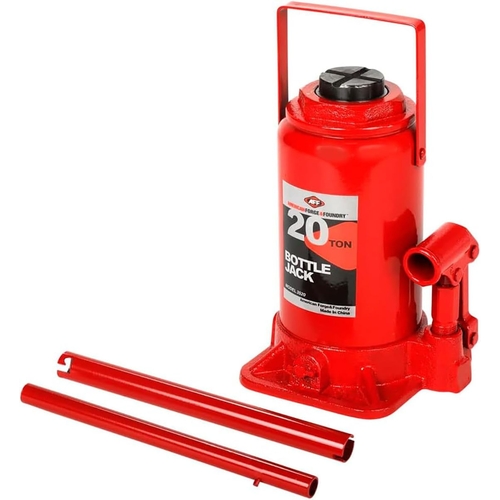

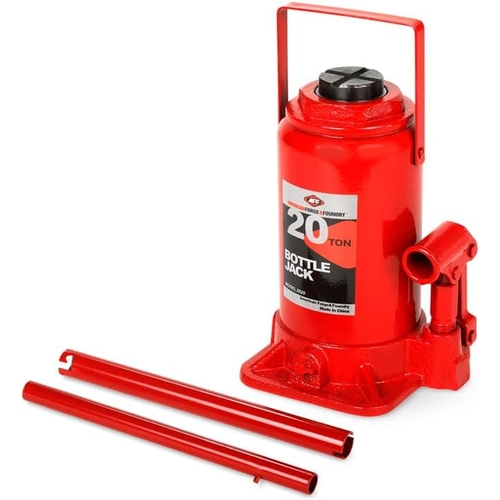

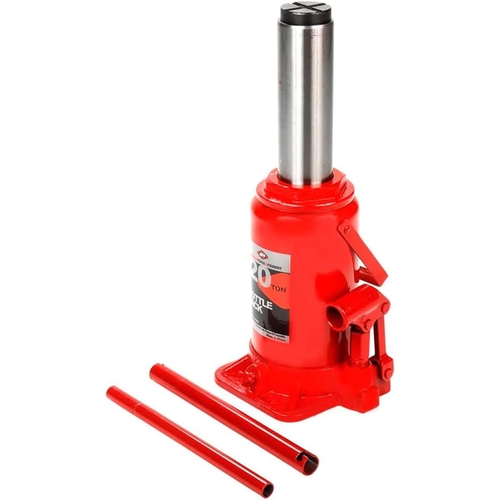

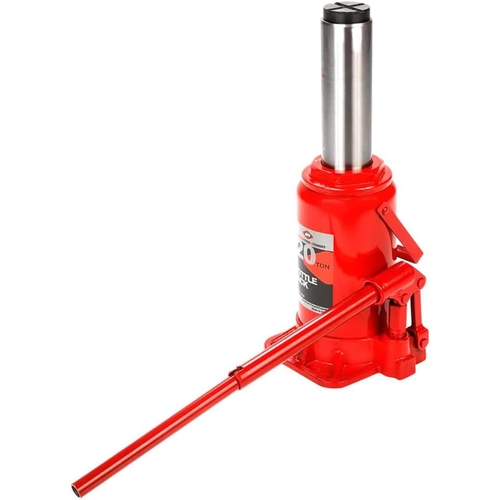

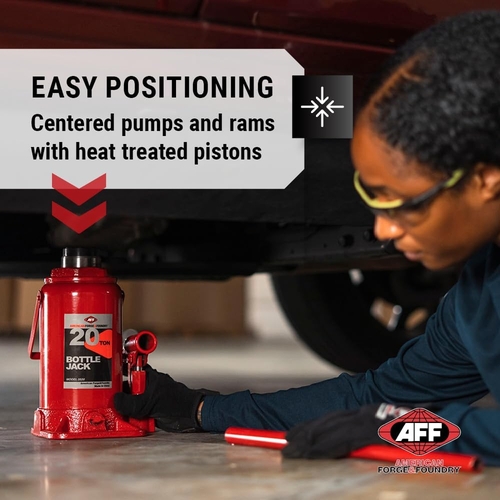

• American Forge & Foundry 3520 Bottle Jack is a heavy duty manual hydraulic jack with 20 Ton lifting capacity. It has centered pump and ram design with heat-treated piston and machine hardened steel saddle for balanced, reliable lifting in demanding conditions.
• Features:
  • 20 Ton capacity suitable for automotive, marine, construction, industrial, and agricultural applications.
  • Minimum height of 9-5/8 inch for access under tight clearances; maximum height of 18-1/4 inch when extended.
  • Lift stroke of 6-3/8 inch for efficient raising of heavy loads.
  • Screw extension of 2-1/4 inch adds height flexibility when needed.

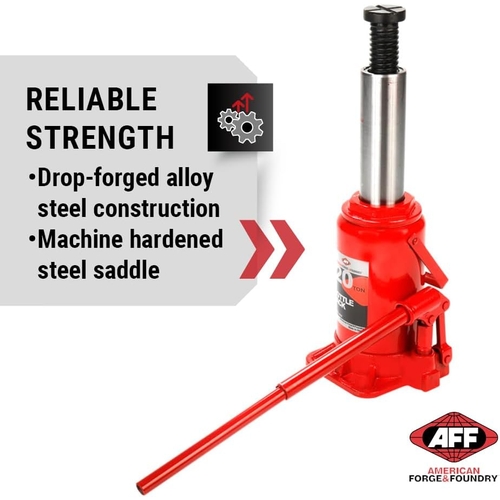

  • Machine hardened steel saddle ensures durable contact surface and resistance to wear.
  • Wide rugged base enhances stability during lifting operations.
• Specifications:
  • Manufacturer: American Forge & Foundry
  • Part Number: 3520
  • Product Type: Bottle Jack
  • Capacity: 20 Ton

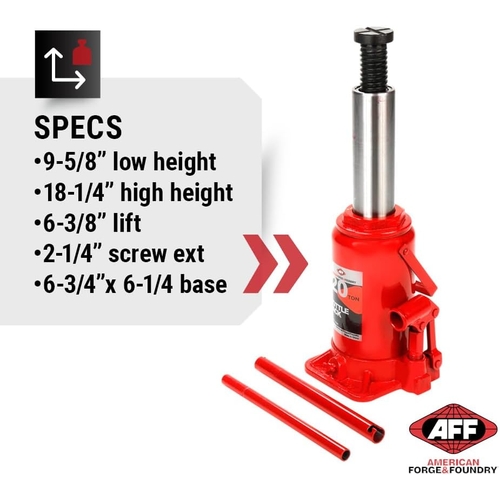

  • Low Height: 9-5/8 inch
  • High Height: 18-1/4 inch
  • Lift Stroke: 6-3/8 inch
  • Screw Extension: 2-1/4 inch
  • Base Size: 6-3/4 inch x 6-1/4 inch
  • Saddle Diameter: approx 1.8 inch
  • Weight: about 27 lb
  • Quantity: Single jack unit
• The American Forge & Foundry 3520 Bottle Jack, Heavy Duty, 20 Ton Capacity, Manual Centered Pump & Ram can also be referred to as AFF 3520 20-Ton bottle jack, AFF manual heavy duty bottle jack 20-Ton, AFF centered ram hydraulic jack, AFF machine hardened saddle jack, American Forge & Foundry 3520 steel bottle jack.

American Forge & Foundry manufactures the 3520 Bottle Jack to deliver strength and stability in heavy load lifting tasks. Its centered pump and ram design, hardened steel saddle, and wide base provide reliable performance in shop, construction, farm, and industrial lifting use.

Q: What is the lifting height range of this jack?
A: The jack lifts from a minimum height of 9-5/8 inch to maximum height of 18-1/4 inch including extensions.

Q: Does it include any height extension mechanism?
A: Yes, it includes a screw extension of 2-1/4 inch for additional lift height when needed.

Q: Is the saddle hardened for durability?
A: Yes, the saddle is machine hardened steel to resist deformation and extend service life under load.
