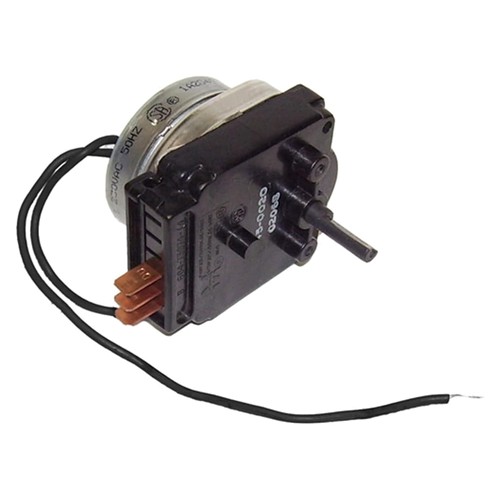

Associated Equipment 611245 120 Minute Electronic Timer With Knob, 120 VAC, 15 A

Associated Equipment 611245 120 Minute Electronic Timer With Knob, 120 VAC, 15 A

• This electronic timer is used in Associated battery charger units that already have a 120 minute electric timer installed. It controls timed battery charging and includes a manual hold mode for longer charging cycles.
• Features:
  • Controls battery charging in timed mode.
  • Manual hold mode for longer charging cycles.
  • Switch circuits are rated 15 A.
  • Termination accepts standard 1/4" spade terminals.
  • Older 90 minute mechanical timer units require the Associated 611254 retrofit kit instead.
• Specifications:
  • Manufacturer: Associated Equipment
  • Part Number: 611245
  • Product Type: Electronic timer with knob
  • Timer Range: 120 minutes
  • Voltage: 120 VAC
  • Switch Circuit Rating: 15 A
  • Connection Type: Standard 1/4" spade terminals
  • Application: Associated battery charger units with electric 120 minute timer already installed
• The 120 Minute Electronic Timer With Knob can also be referred to as battery charger timer, electronic charger timer, 120 minute timer with knob, Associated charger timer, and 120 VAC timer.

Associated Equipment manufactures professional battery chargers, testers, booster cables, charging accessories, and battery service equipment. The company is headquartered in St. Louis, Missouri and has supplied battery service products for more than 70 years.

Q: What is Associated Equipment 611245 used for?
A: It is used in Associated battery charger units that already have an electric 120 minute timer installed.

Q: What terminal style does this timer use?
A: This timer accepts standard 1/4" spade terminals.

Q: What is the switch circuit rating?
A: The switch circuits are rated 15 A.

Q: What should be used for older 90 minute mechanical timer units?
A: Older 90 minute mechanical timer units require the Associated 611254 retrofit kit.
