Associated Equipment 611073 Rectifier Installation Kit, 20 Diode, Replaces 610100, for 6001A and 6002B Battery Chargers

Associated Equipment 611073 Rectifier Installation Kit, 20 Diode, Replaces 610100, for 6001A and 6002B Battery Chargers

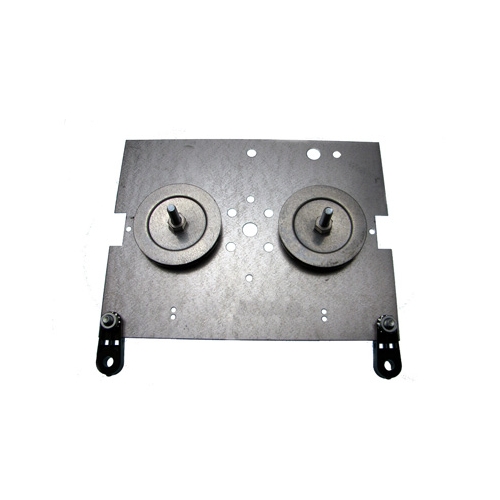

• Associated Equipment 611073 Rectifier Installation Kit (MPN AE611073) is a replacement rectifier assembly upgrade used on Associated battery chargers, including models 6001A and 6002B. This 20 diode, full wave rectifier comes fully assembled and includes installation hardware and insulators to restore charger output and serviceability.
• Features:
  • 20 diode rectifier with full wave rectification supports consistent DC output for battery charger repair and upgrade work.
  • Fully assembled rectifier helps reduce rebuild time compared with replacing individual diodes.
  • Includes mounting hardware and insulator components to support proper installation on compatible chargers.
  • Designed for use as the rectifier on Associated model 6002B and as an upgrade kit for model 6001A battery chargers for correct application.
  • Listed by a distributor as an alternative to part 610100 for replacement when 610100 is specified.

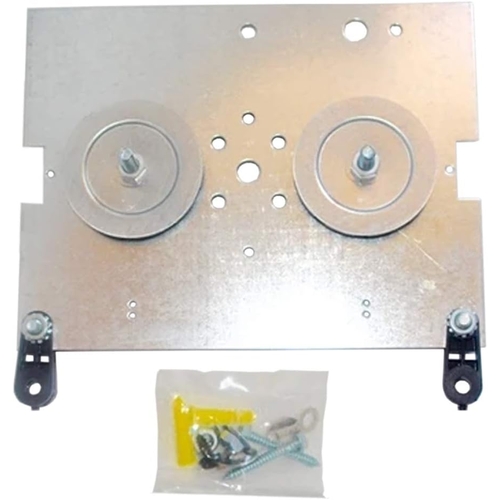

• Includes:
  • 20 Diode Rectifier, Fully Assembled
  • Mounting Hardware
  • Side Insulators and Stand-offs
  • Nuts and Washers for Ring Terminals
  • Resistor With Ring Terminal
• Specifications:
  • Manufacturer: Associated Equipment
  • Part Number: 611073
  • MPN: AE611073
  • Category: Battery Charging Equipment
  • Subcategory: Battery Charger Parts
  • Product Type / Function: Rectifier installation kit for battery charger rectifier replacement
  • Rectification Type: Full Wave Rectification
  • Diode Count: 20
  • Rectifier Size: 6" x 7.76"
  • System Compatibility / Application: Replacement rectifier for Associated battery charger model 6002B and upgrade kit for model 6001A; also listed by a distributor as fitting models 6001 and 6002
  • Alternate Part Numbers / Cross References: 611073; AE611073; Listed by a distributor as an alternative to 610100
• The Rectifier Installation Kit can also be referred to as battery charger rectifier assembly, 20 diode rectifier, full wave rectifier module, Associated 6002B rectifier kit, and 6001A battery charger rectifier upgrade.

Associated Equipment is a manufacturer of professional battery charging, testing, and jump starting equipment, supplying replacement parts and service components for shop and fleet maintenance applications.

Q: What chargers is this rectifier kit designed to fit?
A: It is listed as the rectifier for Associated model 6002B and as an upgrade kit for model 6001A, and a distributor also lists it as fitting models 6001 and 6002.

Q: What is included in the kit?
A: The kit includes a fully assembled 20 diode rectifier plus mounting hardware, side insulators and stand-offs, nuts and washers for ring terminals, and a resistor with ring terminal.

Q: Does this replace part 610100?
A: A distributor lists 611073 as an alternative to 610100. Confirm the part number on your charger or parts list before ordering.

Q: Can the rectifier be configured for different output polarity applications?
A: Product documentation for this kit notes it can be disassembled and the diodes reversed for applications that require negative output.
