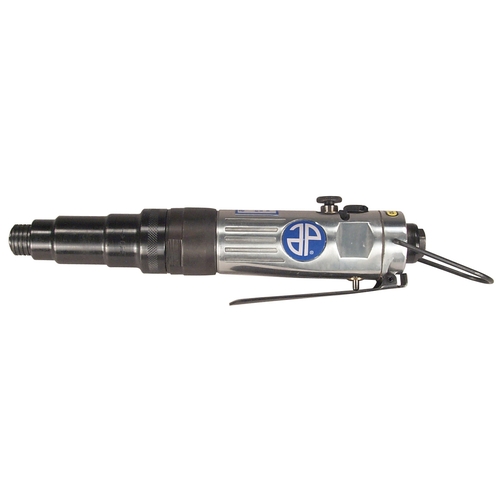

Astro Pneumatic 800T 1/4" Straight Type Screwdriver, 1800 RPM, Air Powered

Astro Pneumatic 800T 1/4" Straight Type Screwdriver, 1800 RPM, Air Powered

• Astro Pneumatic 800T is a 1/4" straight type pneumatic screwdriver rated at 1800 rpm. Its 1/4 inch hex retainer accepts standard bits, while the reversible internal adjustable clutch covers 45 to 115 in lb to control torque. A hanger handle and lightweight build support handheld or balancer use.
• Features:
  • 1/4 inch hex retainer accepts standard bits for quick changeovers across assembly and repair tasks
  • Reversible internal adjustable clutch sets 45 to 115 in lb to protect threads and achieve consistent torque
  • Hanger handle allows balancer mounting or handheld use to reduce fatigue during repetitive fastening
  • Lightweight body improves control and comfort for extended operation
  • 1800 rpm free speed accelerates productivity when driving fasteners
• Specifications:
  • Manufacturer: Astro Pneumatic Tool Company
  • Part Number: 800T
  • Retainer Capacity: 1/4 inch hex
  • Free Speed: 1800 rpm
  • Torque Range: 45 to 115 in lb
  • Overall Length: 10-1/2 inches (257 mm)
  • Net Weight: 2.75 lb (1.3 kg)
  • Air Inlet Thread: 1/4 inch NPT
  • Air Hose I.D.: 3/8 inch (10 mm)
  • Average Air Consumption: 6 cfm
  • Air Pressure: 90 to 120 psi
  • Category: Air tools
  • Subcategory: Pneumatic screwdrivers
  • System Compatibility or Application: Drives standard 1/4 inch hex bits for general fastening; not a replacement part for a specific SKU
  • Alternate Part Numbers / Cross References: AO800T
  • Quantity: Single tool
• The 1/4 Inch Straight Type Screwdriver can also be referred to as pneumatic screwdriver, 1/4 inch hex air screwdriver, straight air screwdriver, adjustable clutch air screwdriver, and industrial pneumatic driver.

Astro Pneumatic Tool Company supplies professional automotive and industrial tools, including air tools, hand tools, and specialty equipment used by technicians and fabricators worldwide.

Q: How is torque adjusted on the 800T?
A: Use the internal adjustable clutch; turning clockwise increases spring compression to raise torque, and counterclockwise reduces it.

Q: What air setup is recommended?
A: Connect a 3/8 inch I.D. hose to a 1/4 inch NPT inlet, supply 90 to 120 psi, and plan for about 6 cfm average air consumption.

Q: Which bits does it accept?
A: The retainer is 1/4 inch hex, compatible with standard 1/4 inch hex screwdriver bits used in shops and assembly lines.
