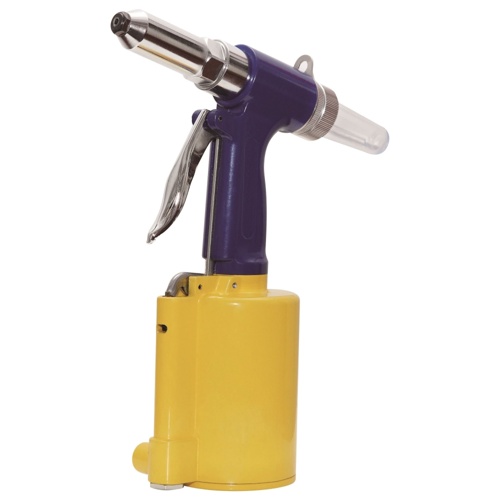

Astro Pneumatic PR36 Air Riveter, 3/32 inch to 3/16 inch Capacity, Includes 4 Nosepieces

Astro Pneumatic PR36 Air Riveter, 3/32 inch to 3/16 inch Capacity, Includes 4 Nosepieces

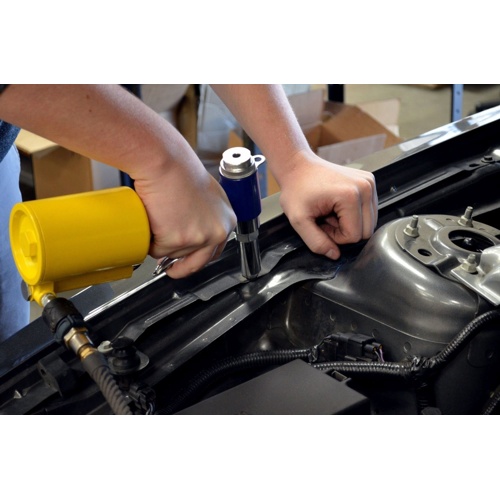

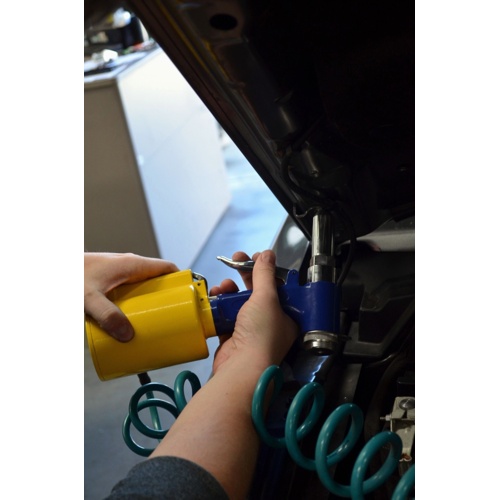

• Astro Pneumatic PR36 air riveter is a pneumatic rivet tool designed to install blind rivets (pop rivets) from 3/32 inch up to 3/16 inch. Built for fast assembly work, it uses a quick release air valve to return the cylinder quickly and help reduce fatigue during repeated riveting.
• Features:
  • Rivet capacity 3/32 inch to 3/16 inch supports common blind rivet sizes for metal fastening and general shop use.
  • Quick release air valve helps the cylinder return quickly for faster assembly operations.
  • Stroke 5/8 inch supports consistent rivet setting across the supported rivet size range.
  • Air pressure range 90 to 120 psi matches typical shop air systems for reliable pneumatic operation.
  • Overall length 10-7/8 inch and net weight 3-1/2 lb help improve control while working in tighter areas.
  • Air inlet 1/4 inch NPT and recommended air hose inside diameter 3/8 inch simplify connection to standard air fittings.
• Includes:
  • PR36 air riveter tool
  • 3/16 inch nosepiece (4.8 mm)
  • 5/32 inch nosepiece (4 mm)
  • 1/8 inch nosepiece (3.2 mm)
  • 3/32 inch nosepiece (2.4 mm)
  • Plastic rivet catcher bottle
  • Two service wrenches (for nosepiece and head servicing)
• Specifications:
  • Manufacturer: Astro Pneumatic
  • Part Number: PR36
  • Alternate Part Number: AOPR36
  • Product Type/Function: Pneumatic air riveter for installing blind rivets (pop rivets)
  • Supported Rivet Sizes: 3/32 inch, 1/8 inch, 5/32 inch, 3/16 inch
  • Maximum Rivet Capacity: 3/16 inch
  • Overall Length: 10-7/8 inch (280 mm)
  • Net Weight: 3-1/2 lb (1.6 kg)
  • Pulling Pressure: 1938 lb
  • Pulling Force: 380 lb
  • Stroke: 5/8 inch (16 mm)
  • Motor: 1/2 hp
  • Air Inlet Thread: 1/4 inch NPT
  • Recommended Air Hose Inside Diameter: 3/8 inch (10 mm)
  • Average Air Consumption: 2.320 liter per stroke
  • Air Pressure: 90 to 120 psi
  • System Compatibility/Application: Designed to install blind rivets (pop rivets) from 3/32 inch to 3/16 inch using a compressed air supply.
• The PR36 Air Riveter can also be referred to as pneumatic rivet gun, air powered pop rivet tool, blind rivet installer, production air riveter, and automotive air riveter.

Astro Pneumatic manufactures automotive and shop tools across multiple categories for professional technicians. With more than 45 years in the automotive tool market, the brand focuses on practical tools and equipment for repair, service, and finishing workflows.

Q: What rivet sizes can this air riveter install?
A: It is designed to install blind rivets in 3/32 inch, 1/8 inch, 5/32 inch, and 3/16 inch sizes.

Q: What air pressure should be used?
A: Use a regulated air supply within 90 to 120 psi as specified for the tool.

Q: How do I switch to a different nosepiece size?
A: Disconnect the air supply, remove the outer cylinder as instructed in the manual, then install the desired nosepiece and tighten using the supplied wrenches before reconnecting air.
