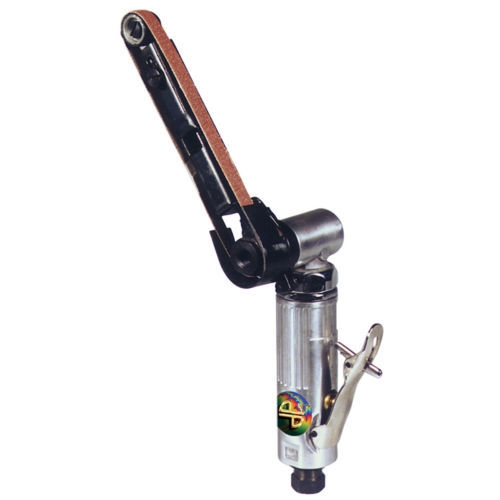

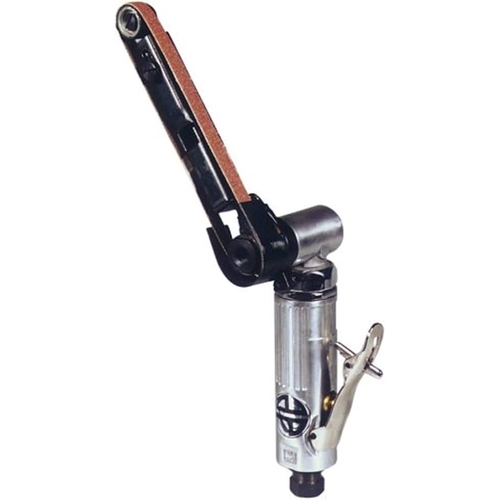

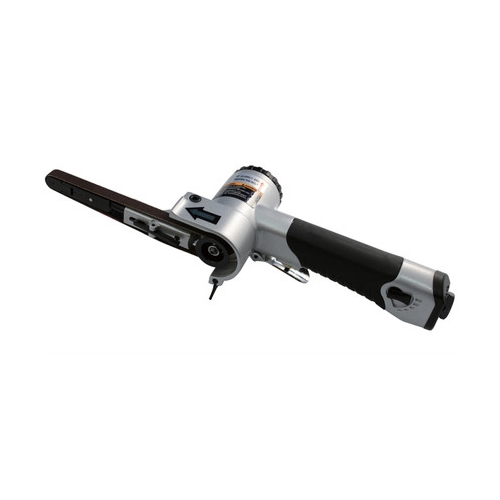

Astro Pneumatic 3036 Air Belt Sander, 3/8 Inch x 13 Inch, 0.5 HP, Variable Speed, With 3 Belts 40 60 80 Grit

Astro Pneumatic 3036 Air Belt Sander, 3/8 Inch x 13 Inch, 0.5 HP, Variable Speed, With 3 Belts 40 60 80 Grit

• Astro Pneumatic 3036 air belt sander uses 3/8 inch x 13 inch belts for precise grinding and finishing in tight areas. A 0.5 hp motor with variable speed delivers up to 16,000 rpm, while a simple belt tension lever and non-slip grip streamline changes and control. Includes 3 belts: 40, 60, and 80 grit.
• Features:
  • 0.5 hp with 16,000 rpm free speed delivers fast material removal on metal and plastic workpieces
  • 3/8 inch x 13 inch narrow belt reaches tight spaces and edges for autobody and fabrication tasks
  • Variable speed control and non-slip handle improve precision and comfort during extended use
  • Simple belt tension lever speeds belt changes to reduce downtime
  • Increased pulley space accepts thicker belts for longer belt life
  • Compatibility note: uses standard 3/8 inch x 13 inch belts; not a replacement part for a specific SKU
• Includes:
  • Air belt sander tool (3036)
  • Sanding belt 40 grit, 3/8 inch x 13 inch
  • Sanding belt 60 grit, 3/8 inch x 13 inch
  • Sanding belt 80 grit, 3/8 inch x 13 inch
• Specifications:
  • Manufacturer: Astro Pneumatic Tool Company
  • Part Number: 3036
  • Belt size: 3/8 inch x 13 inch (10 mm x 330 mm)
  • Power: 0.5 hp
  • Free speed: 16,000 rpm
  • Average air consumption: 4 cfm
  • Air pressure: 90 psi
  • Air inlet: 1/4 inch NPT
  • Overall length: 12.59 inches (320 mm)
  • Net weight: 2.09 lb
  • System Compatibility or Application: uses standard 3/8 inch x 13 inch belts for grinding and finishing; not a replacement part
• The Air Belt Sander can also be referred to as air belt sander, 3/8 inch belt sander, pneumatic belt sander, finger file sander, and auto body belt sander.

Astro Pneumatic Tool Company supplies professional automotive tools and shop equipment, including air tools, hand tools, and specialty solutions for technicians and fabricators.

Q: Which belts fit this tool and what is included?
A: It fits 3/8 inch x 13 inch belts, also listed as 10 mm x 330 mm. The kit includes one 40 grit, one 60 grit, and one 80 grit sanding belt.

Q: What air setup does the 3036 require?
A: Operate at 90 psi with an average air consumption of 4 cfm and a 1/4 inch NPT air inlet.

Q: How do I change belts and adjust speed?
A: Use the belt tension lever to release and replace the belt, and adjust the variable speed control to match material and task.
