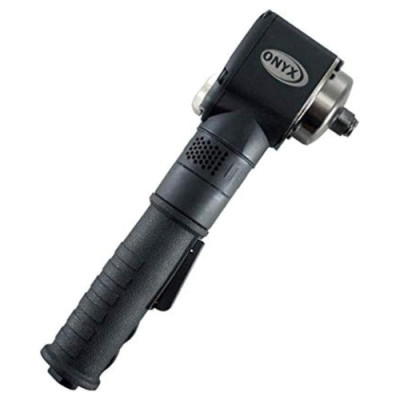

Astro Pneumatic 1832 ONYX Nano Angle Impact Wrench, 1/2 Inch, 415 ft-lb

Astro Pneumatic 1832 ONYX Nano Angle Impact Wrench, 1/2 Inch, 415 ft-lb

• The Astro Pneumatic 1832 ONYX 1/2inch Nano Angle Impact Wrench 415 ft-lb delivers high torque in an extremely compact right-angle form, ideal for tight spaces and exhaust or chassis work where straight impact tools won't fit.
• Features:
  • Maximum torque of 415 ft-lb with working torque around 300 ft-lb for dependable performance.
  • Ultra short 3.46" end-to-end length and low profile width (about credit-card thickness).
  • Uses 1/2" square drive with an oversized hammer clutch for durable impact delivery.
  • 360° swivel air muffler exhaust and 1/4" NPT inlet promote flexibility and ease of routing.
  • Three-speed forward/reverse switch offers control over torque direction and speed.
• Specifications:
  • Manufacturer: Astro Pneumatic
  • Part Number: 1832
  • Drive Size: 1/2 inch square
  • Clutch Type: Oversized Hammer
  • Max Torque: 415 ft-lb
  • Working Torque: 300 ft-lb
  • Free Speed: 9,000 rpm
  • Length (end to end): 3.46 inch
  • Air Inlet: 1/4 inch NPT
  • Average Air Consumption: 4.2 CFM
  • Min Hose Size: 3/8 inch
  • Noise Level (sound pressure): 85 dB
  • System Compatibility: intended for tight-space fastening (e.g. exhaust, subframe, engine mounts), replacing hand ratchets or stub impact wrenches
• The Astro Pneumatic 1832 ONYX 1/2 Nano Angle Impact Wrench 415 ft-lb can also be referred to as ONYX 1832 right-angle impact, 1832 nano angle wrench, low-profile right angle impact, nano exhaust impact, and 1/2" right-angle Nano impact 415.

Astro Pneumatic manufactures professional air tools and shop equipment, including the ONYX series of compact impact wrenches engineered for high torque and accessibility in cramped applications.

Q: What is the working torque versus max torque?
A: The working torque is about 300 ft-lb, while the maximum torque rating is 415 ft-lb.

Q: What air inlet and hose size are required?
A: It uses a 1/4 inch NPT air inlet and is rated for minimum hose size of 3/8 inch.

Q: How short is this impact for tight space use?
A: It is extremely compact only 3.46 inches long allowing access where many straight or bulkier impacts cannot reach.
