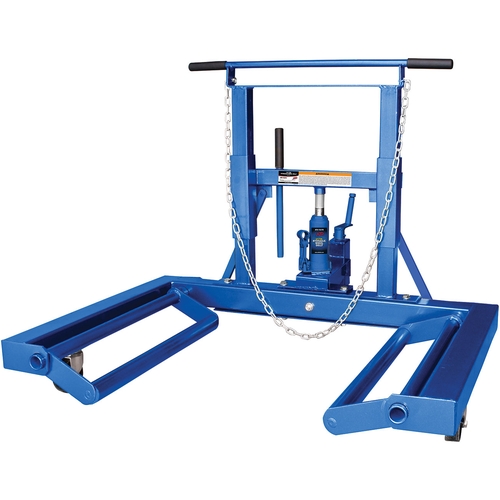

ATD 7227B Hydraulic Wheel Dolly, 3/4 Ton Capacity, 23-5/8" to 60" Tire Diameter Range

ATD 7227B Hydraulic Wheel Dolly, 3/4 Ton Capacity, 23-5/8" to 60" Tire Diameter Range

• This hydraulic wheel dolly is used for removing, installing, and transporting tire and wheel assemblies during heavy-duty service work. It is suited for shops handling single, dual, and duplex wheel setups that require hydraulic lifting and controlled alignment.
• Features:
  • Lift arms adjust to handle different wheel combinations.
  • Leveling screw adjusts the tilt angle for precise wheel alignment.
  • Three swivel casters include one locking caster for movement and positioning.
  • Safety chain secures the load during service.
  • Meets or exceeds ASME/PASE 2019 standards.
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7227B
  • Product Type: Hydraulic Wheel Dolly
  • Capacity: 3/4 Ton, 1,500 pounds
  • Tire Diameter Range: 23-5/8" to 60"
  • Lifting Range: 3-3/8" to 11-1/4"
  • Tilt Range: -1.2 degrees to 4.8 degrees
  • Lifting Arm Dimensions: 25-1/2" D x 32-1/2" W
  • Jack Size: 41-3/8" L x 42-15/16" W x 34-5/16" H
  • Caster Configuration: 3 swivel casters, including 1 locking caster
  • Standards: ASME/PASE 2019
• The Hydraulic Wheel Dolly can also be referred to as wheel dolly, tire wheel dolly, hydraulic tire dolly, heavy-duty wheel dolly, and ATD wheel dolly.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What is this hydraulic wheel dolly used for?
A: It is used for removal, installation, and transportation of single, dual, and duplex tires and wheel assemblies.

Q: What tire diameter range does this wheel dolly support?
A: It supports tire diameters from 23-5/8" to 60".

Q: What is the rated capacity?
A: The rated capacity is 3/4 Ton, or 1,500 pounds.
