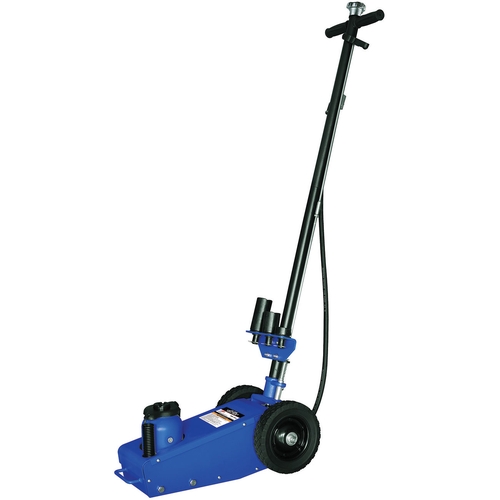

ATD 7307 Low Profile Axle Jack with Spring Return, 22 Ton Capacity, 8.63" Minimum Height

ATD 7307 Low Profile Axle Jack with Spring Return, 22 Ton Capacity, 8.63" Minimum Height

• This hydraulic axle jack lifts rated partial vehicle loads during heavy-duty service work. It is used for truck, fleet, and shop lifting applications where low-profile access, air-assisted raising, and controlled self-retraction are needed.
• Features:
  • High-speed air turbo motor quickly raises the load to the desired height.
  • Heavy-duty spring return gives faster and controlled self-retraction.
  • Welded pump construction is used for trouble-free performance.
  • Heat-treated extension screw increases maximum lift height.
  • Three handle positions allow storage, movement, and access to the lift point.
• Includes:
  • Low profile axle jack with spring return
  • 0.8" adapter
  • 2.4" adapter
  • 3.9" adapter
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7307
  • UPC: 663126073077
  • Product Type: Low Profile Axle Jack with Spring Return
  • Capacity: 22 Ton
  • Minimum Height: 8.63"
  • Maximum Height with Adapters: 21.5"
  • Extension Screw: 4"
  • Handle Length: 48.38"
  • Hydraulic Range: 4.88"
  • Adapter Sizes: 0.8", 2.4", and 3.9"
  • Standards: ASME PASE-2024
• The Low Profile Axle Jack with Spring Return can also be referred to as 22 Ton axle jack, low profile truck jack, air hydraulic axle jack, spring return axle jack, and ATD axle jack.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What is the rated capacity of this axle jack?
A: The rated capacity is 22 Ton.

Q: What adapter sizes are included?
A: The included adapter sizes are 0.8", 2.4", and 3.9".

Q: What is the maximum height with adapters?
A: The maximum height with adapters is 21.5".
