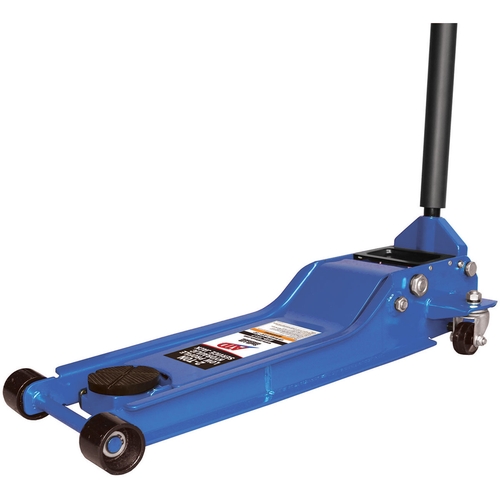

ATD 7317 Low Profile Hydraulic Service Jack, 2 Ton, 2-3/4" Minimum Height

ATD 7317 Low Profile Hydraulic Service Jack, 2 Ton, 2-3/4" Minimum Height

• This hydraulic service jack is used for lifting vehicles during automotive repair and maintenance. The low profile frame and deep reach lift arm are suited for low ground clearance vehicles in professional shop and service bay environments.
• Features:
  • Swift Lift Technology provides quicker lift action for professional service use.
  • Dual pump pistons are shielded to prevent contaminants from damaging the hydraulic system.
  • Internal by-pass valve protects the hydraulic system from over pumping.
  • U-Joint release mechanism gives precise control of load descent in any handle position.
  • Full cover rubber saddle pad and protective foam handle cover help protect the vehicle during lifting and positioning.
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7317
  • Product Type: Low Profile Hydraulic Service Jack
  • Capacity: 2 Ton
  • Minimum Height: 2-3/4"
  • Maximum Height: 24"
  • Handle Length: 49-1/4"
  • Front Casters: 2-1/2" diameter x 2" width
  • Saddle Diameter: 4" with full saddle pad
  • Jack Size: 36" L x 15-1/8" W x 6-1/4" H
  • Standards: ASME PASE-2024
• The Low Profile Hydraulic Service Jack can also be referred to as 2 Ton service jack, low profile floor jack, hydraulic service jack, low clearance vehicle jack, and ATD service jack.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What is the lifting capacity of this service jack?
A: This service jack has a 2 Ton capacity.

Q: What is the lift height range?
A: The lift height range is 2-3/4" to 24".

Q: What vehicles is this jack suited for?
A: The low profile frame and deep reach lift arm are suited for low ground clearance vehicles.
