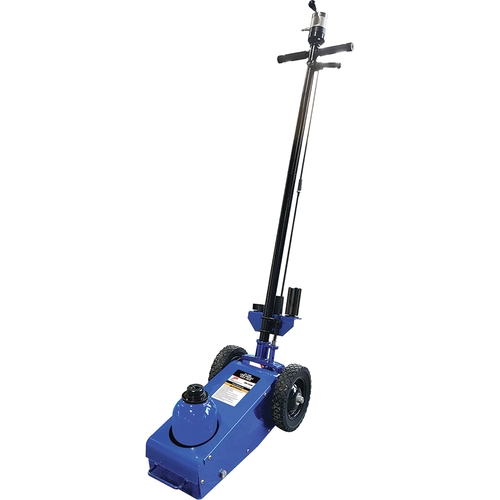

ATD 7328B Low Profile Axle Jack, 22 Ton Capacity, 8-15/16" Minimum Height

ATD 7328B Low Profile Axle Jack, 22 Ton Capacity, 8-15/16" Minimum Height

• This low profile axle jack lifts rated partial vehicle loads during heavy-duty service work. It is used for truck, fleet, and shop lifting applications where low pickup height, air-assisted operation, and controlled lifting and lowering are needed.
• Features:
  • High speed air turbo motor quickly raises the load to the desired height.
  • Air control knob allows precise lifting and lowering.
  • Welded pump construction is used for trouble-free performance.
  • Heat-treated extension screw increases maximum lift height.
  • Three handle positions cover storage, movement, and access to the lift point.
• Includes:
  • Low profile axle jack
  • 0.8" adapter
  • 2.4" adapter
  • 3.9" adapter
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7328B
  • Product Type: Low Profile Axle Jack
  • Capacity: 22 Ton
  • Minimum Height: 8-15/16"
  • Maximum Height with Adapters: 20-15/16"
  • Extension Screw: 3-5/16"
  • Handle Length: 48.4"
  • Hydraulic Range: 4-3/4"
  • Adapter Sizes: 0.8", 2.4", and 3.9"
  • Standards: ASME PASE-2024
• The Low Profile Axle Jack can also be referred to as 22 Ton axle jack, low profile truck jack, air hydraulic axle jack, heavy-duty axle jack, and ATD axle jack.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What is the rated capacity of this axle jack?
A: The rated capacity is 22 Ton.

Q: What adapter sizes are included?
A: The included adapter sizes are 0.8", 2.4", and 3.9".

Q: What is the lift height range?
A: The minimum height is 8-15/16", and the maximum height with adapters is 20-15/16".
