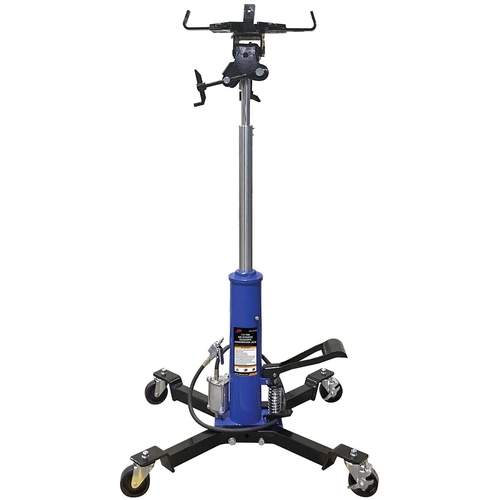

ATD 7431B Air Actuated Telescopic Transmission Jack, 1/2 Ton, 37" to 77.5" Lift Range

ATD 7431B Air Actuated Telescopic Transmission Jack, 1/2 Ton, 37" to 77.5" Lift Range

• This transmission jack raises and supports transmissions during removal and installation under an overhead lift or in a garage pit. The telescopic air powered layout is used for automotive and light truck transmission, transfer case, and transaxle service.
• Features:
  • Extra-wide base lowers the center of gravity and promotes stability.
  • Rugged 4" polyurethane wheels provide shop movement, with 2 wheels equipped with brakes.
  • Foot release pedal controls load lowering.
  • Adjustable saddle fits most transmission pan configurations.
  • Chrome-plated two-stage rams maximize high-reach lifting height.
  • Nylon strap secures the transmission to the jack.
  • Meets or exceeds current ASME PASE-2024 standards.
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7431B
  • Product Type: Air Actuated Telescopic Transmission Jack
  • Capacity: 1/2 Ton
  • Minimum Height: 37"
  • Maximum Height: 77.5"
  • Saddle Base: 11.4" x 11.4"
  • Minimum Saddle Area: 6.3" x 6.3"
  • Maximum Expanded Saddle Area: 18" x 18"
  • Front and Rear Saddle Range of Motion: At least 30 degrees
  • Left and Right Saddle Range of Motion: At least 10 degrees
  • Air Pressure: 110-120 psi
  • Standards: ASME PASE-2024
• The Air Actuated Telescopic Transmission Jack can also be referred to as transmission jack, air transmission jack, telescopic transmission jack, 1/2 Ton transmission jack, and ATD transmission jack.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What is the rated capacity of this transmission jack?
A: This transmission jack has a 1/2 Ton rated capacity.

Q: What is the lift height range?
A: The lift height range is 37" to 77.5".

Q: What air pressure does this jack require?
A: This jack requires 110-120 psi air pressure.
