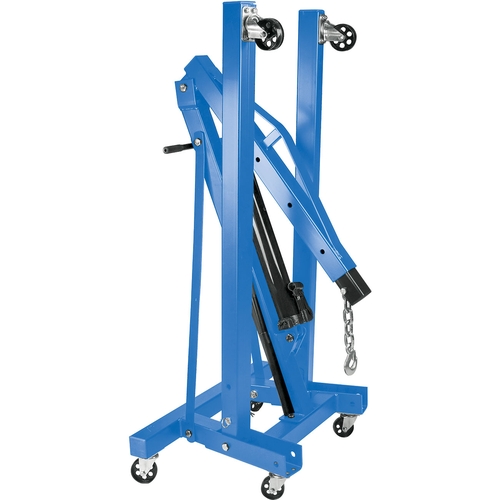

ATD 7485B Heavy-Duty Hydraulic Folding Engine Crane, 2 Ton Capacity

ATD 7485B Heavy-Duty Hydraulic Folding Engine Crane, 2 Ton Capacity

• This hydraulic folding engine crane is used for lifting and positioning engines during automotive repair, rebuilding, and service work. The folding frame, metered release valve, and double pump ram design suit shop use where controlled lifting and compact storage are needed.
• Features:
  • Heavy-duty welded construction uses rugged reinforced tubular steel.
  • Metered control release valve provides precise lowering control.
  • Double pump ram design lifts the load on both the up stroke and down stroke.
  • Foldable frame reduces storage space when the crane is not in use.
  • Includes safety straps and meets or exceeds current ASME PASE-2024 standards.
• Includes:
  • Hydraulic folding engine crane
  • Safety straps
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7485B
  • UPC: 663126370558
  • Product Type: Heavy-Duty Hydraulic Folding Engine Crane
  • Capacity: 2 Ton
  • Base Length: 65.2"
  • Base Width Front: 39.4"
  • Base Width Rear: 31.5"
  • Height: 58.9"
  • Folded Height: 60.1"
  • Front Wheel Diameter: 3.5"
  • Rear Wheel Diameter: 3.5"
  • Hook Height at 2 Ton Capacity: 15.4" to 70.9"
  • Hook Height at 1.5 Ton Capacity: 9.8" to 76.8"
  • Hook Height at 1 Ton Capacity: 4.3" to 83.1"
  • Hook Height at 0.5 Ton Capacity: 0" to 88.6"
  • Standards: ASME PASE-2024
  • Packaging Type: Ships in 2 cartons
• The Heavy-Duty Hydraulic Folding Engine Crane can also be referred to as 2 Ton engine crane, hydraulic engine hoist, folding shop crane, engine lifting crane, and ATD engine crane.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What is the rated capacity of this engine crane?
A: This engine crane has a 2 Ton rated capacity.

Q: Does this engine crane fold for storage?
A: Yes. The frame folds for storage when the crane is not in use.

Q: What is the hook height range at 2 Ton capacity?
A: The hook height range at 2 Ton capacity is 15.4" to 70.9".
