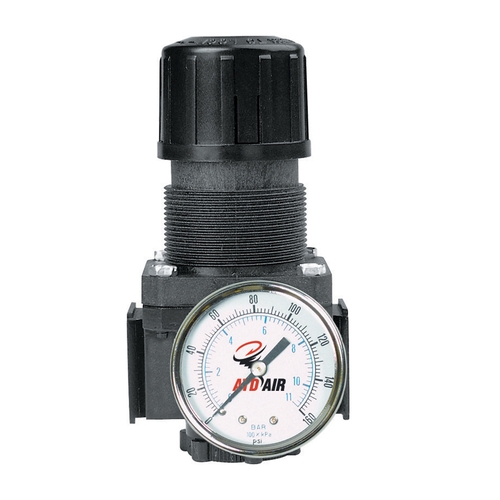

ATD 7844 Air Regulator with Gauge, 1/2" Pipe Size, 100 SCFM

ATD 7844 Air Regulator with Gauge, 1/2" Pipe Size, 100 SCFM

• This air line regulator reduces upstream supply pressure to a consistent downstream pressure for pneumatic equipment. It is used in compressed air systems where controlled air pressure is needed for air tools and shop equipment.
• Features:
  • Self-relieving regulator style releases excess downstream pressure.
  • Three-position non-rising knob can be pushed to lock, pulled to adjust, or detached for tamper resistance.
  • Pressure gauge is included for line pressure reading.
  • Two 1/4" NPT gauge ports are built into the regulator body.
• Specifications:
  • Manufacturer: ATD
  • Part Number: 7844
  • Product Type: Air Regulator with Gauge
  • Pipe Size: 1/2"
  • Maximum Flow: 100 SCFM
  • Adjustment Type: Adjustment knob
  • Pressure Gauge: Included
  • Gauge Ports: Two 1/4" NPT ports
  • Operating Temperature Range: 40 F to 120 F
  • Adjustment Range: 5 to 125 psig
• The Air Regulator with Gauge can also be referred to as air line regulator, compressed air regulator, pneumatic air regulator, 1/2" air regulator, and ATD air regulator.

ATD Tools Inc. supplies professional automotive tools and equipment through distribution in the United States and Canada. The company markets hand tools, shop equipment, lighting, air tools, lifting products, paint and body tools, and specialty service tools for automotive technicians.

Q: What pipe size does this air regulator use?
A: This air regulator uses a 1/2" pipe size.

Q: What is the maximum flow rating?
A: The maximum flow rating is 100 SCFM.

Q: Is a pressure gauge included?
A: Yes. A pressure gauge is included.
