Autel IM608PROIIKPA MaxiIM IM608 PRO II Key Programming Tablet Bundle, 10.1" Android Tablet with XP400Pro, JVCI, and IMKPA

Autel IM608PROIIKPA MaxiIM IM608 PRO II Key Programming Tablet Bundle, 10.1" Android Tablet with XP400Pro, JVCI, and IMKPA

• Autel IM608PROIIKPA is a key and immobilizer programming bundle built around the MaxiIM IM608 PRO II tablet. It combines IMMO functions, OE-level diagnostics, service functions, XP400Pro chip programming, wireless J2534 pass-thru programming, and expanded key programming adapters.
• Features:
  • Smart Mode is used for guided and automated key learning, while Expert Mode is used for advanced key learning.
  • IMMO functions include PIN/CS reading for all keys lost, key generation, key learning, remote learning, IMMO ECU reset/adaptation, refresh/coding, transponder read/write, and EEPROM/MCU read/write.
  • Key learning via the OBDII port covers 85% of North American vehicles.
  • Diagnostics functions include AutoVIN, all-system AutoSCAN, active tests, coding, and adaptations.
  • Advanced maintenance services include EPB, DPF, SAS, oil reset, and BMS functions.

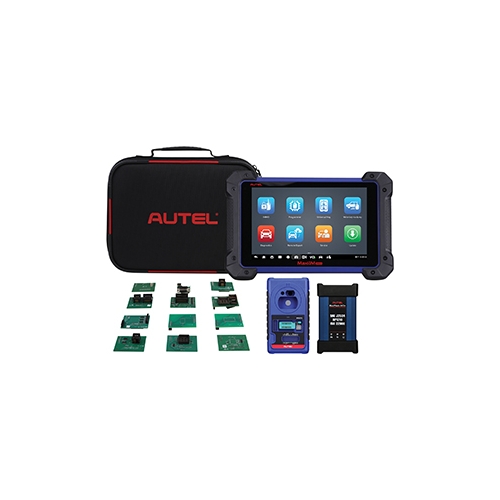

• Includes:
  • MaxiIM IM608 PRO II 10.1-inch Android touchscreen tablet
  • XP400Pro key and chip programmer
  • MaxiFlash JVCI+ wireless J2534 pass-thru programming device
  • IMKPA key programming adapter kit
  • G-BOX3
  • APB112
  • Main cable
  • USB cable
  • Mini USB cable
  • AC/DC adapter
  • Spare fuse 6x30mm (2)
  • Auxiliary power outlet adapter
  • AAC001
  • USB to Ethernet adapter
  • APC101 USB cable
  • APB104 MCU_FQFP64
  • APB105 MCU_FQFP80
  • APB106 MCU_FQFP112
  • APB107 MCU_FQFP144
  • APB108 MCU_FQFP176
  • APB129 EEPROM adapter
  • APB125 Mercedes infrared collector
  • APA002 EEPROM socket
  • APA101 signal cable
  • APA103 EEPROM clamp
  • APA107 ECU cable
  • APA108 MCU cable
  • APA109 MC9S12 cable
  • Connect cable
  • Quick reference guide
  • Packing list
  • Carrying case
• Specifications:
  • Manufacturer: Autel
  • Part Number: IM608PROIIKPA
  • UPC: 849438035594
  • Product Type: Immobilizer and key programming tablet bundle
  • Display: 10.1-inch LED capacitive touchscreen
  • Display Resolution: 1920 x 1200
  • Operating System: Android 10
  • Processor: Qualcomm SDM660 octa-core processor, 2.2 GHz
  • Memory: 4GB RAM and 128GB on-board memory
  • Battery: 15000 mAh 3.8 V lithium-polymer battery
  • Connectivity: Wi-Fi, USB 2.0, Bluetooth v.2.1 + EDR, SD card up to 64GB, HDMI
  • Included Programmer: XP400Pro key and chip programmer
  • Included Pass-Thru Device: MaxiFlash JVCI+
  • Included Adapter Kit: IMKPA
  • Tablet Dimensions W x H x D: 300 mm x 220 mm x 50 mm
  • Net Weight: 1.58 kg (3.48 lb)
• The Autel IM608PROIIKPA MaxiIM IM608 PRO II Key Programming Tablet Bundle can also be referred to as key programming tablet bundle, IMMO diagnostic scanner, XP400Pro programmer kit, J2534 pass-thru programming tool, and IMKPA adapter bundle.

Autel is a developer, manufacturer, and distributor of professional automotive diagnostic tools, equipment, and accessories. Its product categories include diagnostic tools, TPMS service, ADAS and alignment, battery service, key programming, and heavy duty diagnostics.

Q: What are the main components in the Autel IM608PROIIKPA bundle?
A: The bundle includes the MaxiIM IM608 PRO II tablet, XP400Pro key and chip programmer, MaxiFlash JVCI+ wireless J2534 pass-thru programming device, and IMKPA key programming adapter kit.

Q: What key and immobilizer functions does the IM608PROIIKPA perform?
A: It performs PIN/CS reading for all keys lost, key generation, key learning, remote learning, IMMO ECU reset/adaptation, refresh/coding, transponder read/write, and EEPROM/MCU read/write.

Q: What diagnostic and service functions are included?
A: Diagnostic functions include AutoVIN, all-system AutoSCAN, active tests, coding, and adaptations; service functions include EPB, DPF, SAS, oil reset, and BMS.
