Autel MaxiSYS MS908CV II Heavy-Duty Vehicle Diagnostics and Service Tablet, Class 1-9, 9.7" Touchscreen with MaxiFlash VCI/J2534

Autel MaxiSYS MS908CV II Heavy-Duty Vehicle Diagnostics and Service Tablet, Class 1-9, 9.7" Touchscreen with MaxiFlash VCI/J2534

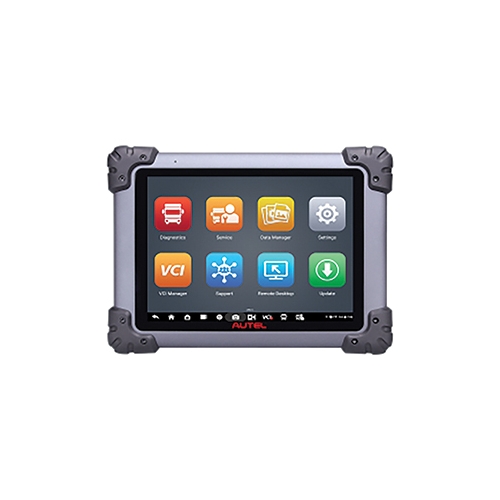

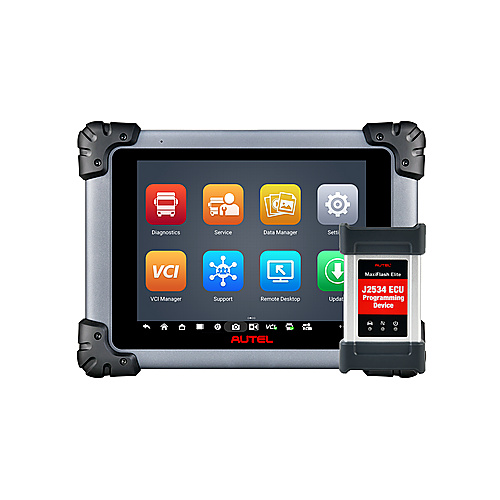

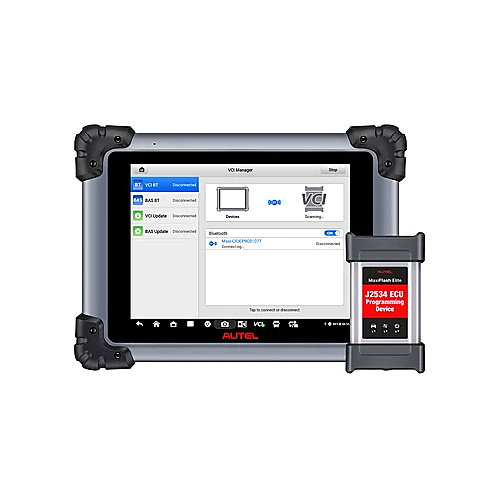

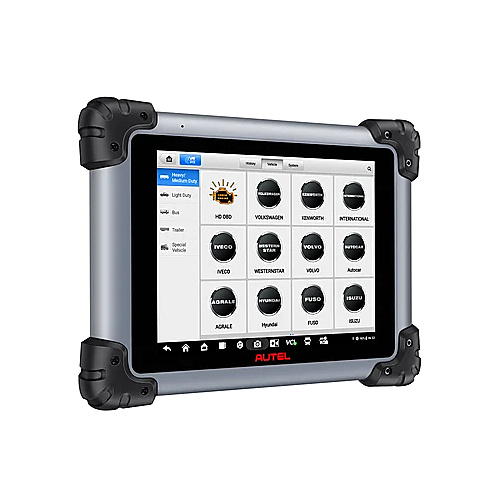

• Autel MS908CV II is a 9.7" wireless touchscreen heavy-duty vehicle diagnostics and service tablet. It performs advanced diagnostics on Class 1-Class 9 heavy duty vehicles and includes service functions, injector cutout tests, injector coding, and MaxiFlash wireless Bluetooth VCI/J2534.
• Features:
  • 9.7" wireless touchscreen heavy duty vehicle diagnostics and service tablet.
  • Performs advanced diagnostics on Class 1-Class 9 heavy duty vehicles.
  • Service and maintenance function menu includes forced DPF regen, EPB, and Ols.
  • Performs injector cutout tests and injector coding.
  • Equipped with MaxiFlash wireless Bluetooth VCI/J2534.
• Includes:
  • MaxiSYS MS908CV II tablet

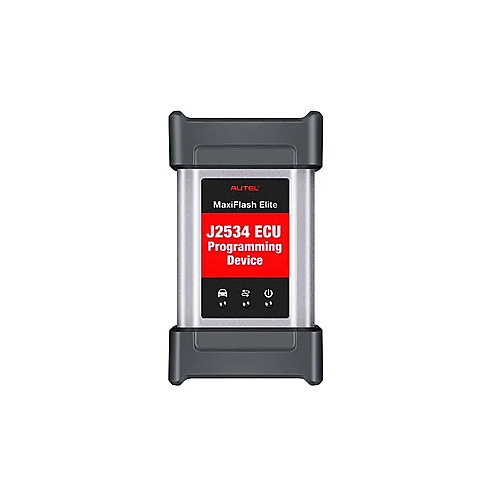

  • MaxiFlash wireless Bluetooth VCI/J2534
• Specifications:
  • Manufacturer: Autel
  • Part Number: MS908CV II
  • UPC: 849438015862
  • Product Type: Heavy-duty vehicle diagnostics and service tablet
  • Vehicle Coverage: Class 1-9 vehicles
  • Operating System: Android 10
  • Processor: Octa-core processor (4 x 2.2 GHz + 4 x 1.8 GHz)
  • Memory: 4 GB RAM and 128 GB on-board memory
  • Display: 9.7-inch LED capacitive touchscreen
  • Display Resolution: 2048 x 1536
  • Connectivity: Wi-Fi 802.11 a/b/g/n/ac, USB 2.0, Bluetooth v5.0 + EDR, SD card up to 64 GB, HDMI
  • Rear Camera: 16.0 megapixels with auto focus and flashlight
  • Battery: 11000 mAh 3.7 V lithium-polymer battery
  • Input Voltage: 12 V (9-24 V)
  • Power Consumption: 6.5 W
  • Dimensions W x H x D: 300 mm (11.81") x 220 mm (8.66") x 50 mm (1.97")
  • Net Weight: 1.42 kg (3.13 lbs)
  • Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
• The Autel MS908CV II MaxiSYS Heavy-Duty Vehicle Diagnostics and Service Tablet can also be referred to as commercial vehicle diagnostic tablet, heavy-duty scan tool, Class 1-9 diagnostic scanner, MaxiSYS CV tablet, and J2534 vehicle communication interface kit.

Autel is a developer, manufacturer, and distributor of professional automotive diagnostic tools, equipment, and accessories. Its product categories include diagnostic tools, TPMS service, ADAS and alignment, battery service, key programming, and heavy duty diagnostics.

Q: What vehicle classes does the Autel MS908CV II cover?
A: It performs advanced diagnostics on Class 1-9 vehicles, covering light-, medium-, and heavy-duty applications.

Q: What diagnostic functions are available on the MS908CV II?
A: The tablet performs Auto Scan, reads and erases codes, views and graphs live data, and performs bi-directional Active Tests and Special Functions.

Q: What service functions are listed for the MS908CV II?
A: The service menu includes more than 40 functions, including forced DPF regen, oil light reset, maintenance service light reset, and brake bleed.
