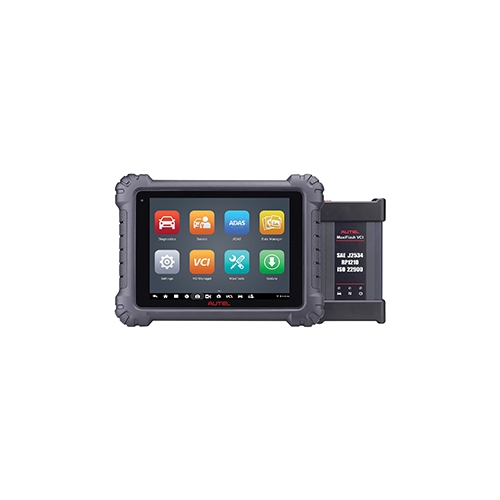

Autel MS909 MaxiSYS Diagnostic Tablet with MaxiFlash VCI/J2534, 9.7" Touchscreen, 128GB Memory

Autel MS909 MaxiSYS Diagnostic Tablet with MaxiFlash VCI/J2534, 9.7" Touchscreen, 128GB Memory

• Autel MS909 is a 9.7-inch touchscreen Android-based diagnostic tablet powered by an octa-core processor. It features topology module mapping capability and an advanced VCI with D-PDU, DoIP, CAN FD, and Mega CAN protocols.
• Features:
  • 9.7-inch touchscreen Android-based diagnostic tablet with 1536 x 2048 resolution.
  • Powered by an octa-core processor with 2.3GHz Quad and 1.7GHz Quad processing.
  • Advanced VCI protocols include D-PDU, DoIP, CAN FD, and Mega CAN.
  • Topology module mapping displays a color-coded all-system status screen on supported vehicles.
• Includes:
  • MaxiSYS MS909 tablet
  • MaxiFlash VCI
  • Cables
  • Carrying case
• Specifications:
  • Manufacturer: Autel
  • Part Number: MS909
  • UPC: 849438004934
  • Product Type: Advanced diagnostic tablet with MaxiFlash VCI/J2534
  • Operating System: Android 7.0
  • Processor: Octa-core processor (2.3GHz Quad + 1.7GHz Quad)
  • Memory: 4GB RAM and 128GB on-board memory
  • Display: 9.7-inch TFT-LCD capacitive touchscreen
  • Display Resolution: 1536 x 2048
  • Connectivity: Dual Wi-Fi, BT V5.0 + BR/EDR, GPS, USB 2.0, HDMI 2.0, SD card up to 256GB
  • Camera: 16 megapixel rear camera with autofocus and flashlight; 16 megapixel front camera
  • Battery: 15000 mAh 3.8 V lithium-polymer battery
  • Input Voltage: 12 V / 3 A adapter
  • Dimensions W x H x D: 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
  • Weight: 1.66 kg (3.66 lb)
  • Protocols: D-PDU, DoIP, CAN FD, Mega CAN
• The Autel MS909 MaxiSYS Diagnostic Tablet can also be referred to as advanced diagnostic tablet, MaxiFlash VCI scan tool, J2534 diagnostic scanner, topology mapping scan tool, and ECU coding diagnostic tablet.

Autel is a developer, manufacturer, and distributor of professional automotive diagnostic tools, equipment, and accessories. Its product categories include diagnostic tools, TPMS service, ADAS and alignment, battery service, key programming, and heavy duty diagnostics.

Q: What vehicle communication protocols are included with the Autel MS909?
A: The MS909 includes an advanced VCI with DoIP, D-PDU, CAN FD, and Mega CAN communication protocols.

Q: What is topology module mapping on the MS909?
A: Topology module mapping displays a color-coded all-system status screen on supported vehicles.

Q: What are the main tablet hardware specifications?
A: The tablet has a 9.7-inch touchscreen, 4GB RAM, 128GB on-board memory, a 15000 mAh lithium-polymer battery, and front and rear cameras.
