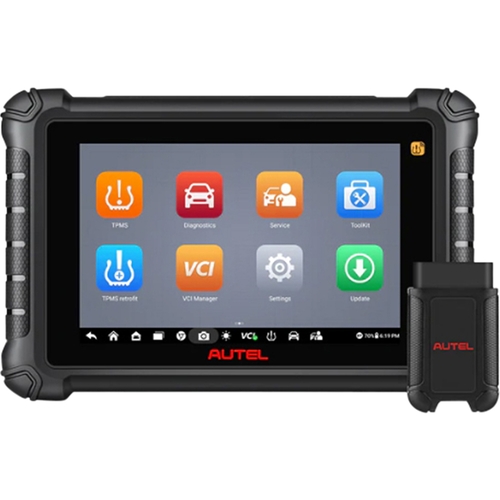

Autel MaxiTPMS TS900 TPMS Diagnostic and Service Tablet, 8" Touchscreen, 64GB Memory

Autel MaxiTPMS TS900 TPMS Diagnostic and Service Tablet, 8" Touchscreen, 64GB Memory

• Autel TS900 is a three-in-one TPMS, diagnostics, and service tablet for vehicles from 1996 and newer. It handles TPMS sensor activation, reading, relearn procedures, sensor programming, all-systems diagnostics, active tests, and service menu functions.
• Features:
  • Activates, reads, and relearns all known TPMS sensors, including Tesla OE sensors.
  • Programs Autel 1-Sensors to replace 99 percent of TPMS sensors on vehicles on the road today.
  • Four 1-Sensor programming methods include Copy by Activation, Copy by OBD, Auto Create, and Copy by Manual Input.
  • Compatible with Autel BLE Sensor for Tesla vehicles and vehicles using Bluetooth Low Energy TPMS sensors.
  • All-systems diagnostics include read and erase codes, Freeze Frame data, Live Data graphing, bi-directional Active Tests, Special Functions, and Pre- and Post-Scan reports.
• Includes:
  • TS900 main unit
  • MaxiVCI V150
  • Power adapter
  • USB Type-C cable
  • Soft cloth
  • Quick Reference Guide
  • Packing list
  • Carrying case
• Specifications:
  • Manufacturer: Autel
  • Part Number: TS900
  • UPC: 849438018450
  • Product Type: TPMS, diagnostics, and service wireless tablet
  • Vehicle Coverage: U.S., Asian, and European vehicles, 1996 and newer
  • Operating System: Android 11
  • Processor: RK3566 Quad-core Arm Cortex-A55 processor, 1.8 GHz
  • Memory: 4GB RAM and 64GB ROM
  • Display: 8-inch LCD capacitive touchscreen
  • Display Resolution: 1280 x 800
  • TPMS Sensor Frequencies: 315MHz, 433/434MHz, and 2.4GHz BLE
  • Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, and memory card up to 64GB
  • Rear Camera: 8 MP
  • Sensor: Ambient light sensor
  • Audio Output: Buzzer
  • Battery: 3.7 V / 7700 mAh lithium-polymer battery
  • Tested Battery Life: Around 7 hours of continuous use
  • Battery Charging Input: 5 V / 3 A
  • Net Weight: 998 g (2.2 lb)
  • Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, ISO13400, DoIP, and CAN FD
• The Autel TS900 MaxiTPMS TS900 can also be referred to as TPMS diagnostic tablet, TPMS programming tool, tire pressure sensor scanner, bi-directional TPMS scan tool, and MaxiTPMS service tablet.

Autel is a developer, manufacturer, and distributor of professional automotive diagnostic tools, equipment, and accessories. Its product categories include diagnostic tools, TPMS service, ADAS and alignment, battery service, key programming, heavy duty, EV diagnostics, and vehicle lifts.

Q: Which TPMS sensors can the Autel TS900 read and relearn?
A: It activates, reads, and relearns all known TPMS sensors, including Tesla OE sensors.

Q: Which Autel sensor programming methods are available?
A: The TS900 programs Autel 1-Sensors with Copy by Activation, Copy by OBD, Auto Create, and Copy by Manual Input methods.

Q: Does the TS900 include a vehicle communication interface?
A: Yes. The packing list includes a MaxiVCI V150 with the TS900 main unit.
