Sunex SX243 Heavy Duty Long Barrel Air Hammer, 250 mm, 2300 BPM, Quick Change Chisel Retainer

Sunex SX243 Heavy Duty Long Barrel Air Hammer, 250 mm, 2300 BPM, Quick Change Chisel Retainer

• Sunex SX243 is a heavy duty long barrel air hammer for cutting, chiseling, and driving tasks in automotive and industrial service. It delivers up to 2300 blows per minute with a 3.75 inch stroke and features a quick change chisel retainer for fast accessory swaps; this is not a replacement part.
• Features:
  • High output performance rated to 2300 blows per minute with a 3.75 inch stroke for fast material removal and tough jobs.
  • Patented damping system and balanced design help reduce vibration and user fatigue during extended use.
  • Quick change chisel retainer speeds bit changes; accepts standard 0.401 inch shank chisels for broad compatibility.

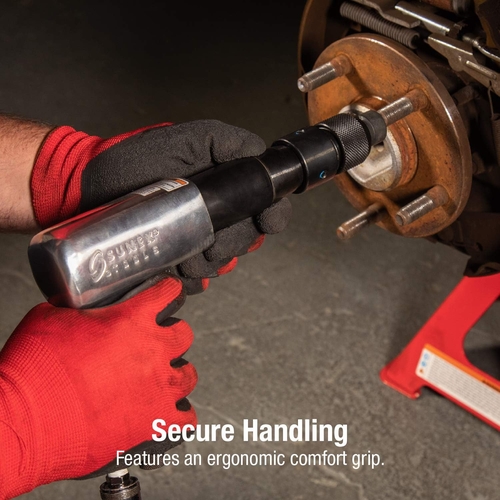

  • Heavy duty construction with hardened steel barrel and comfort grip; universal shop tool, not a vehicle specific replacement component.
• Specifications:
  • Manufacturer: Sunex
  • Part Number: SX243
  • Category: Air Tools
  • Subcategory: Air Hammers
  • Product Type / Function: Heavy duty long barrel pneumatic air hammer for cutting, chiseling, and driving
  • Barrel Length: 250 mm
  • Blows per Minute: 2300
  • Stroke Length: 3.75 inches
  • Chisel Shank Size: 0.401 inch
  • Average Air Consumption: 4 cfm
  • Recommended Air Pressure: 90 psi
  • Air Inlet: 1/4 inch NPT
  • Minimum Hose Size: 3/8 inch I.D.
  • Sound Level: 110 dBA

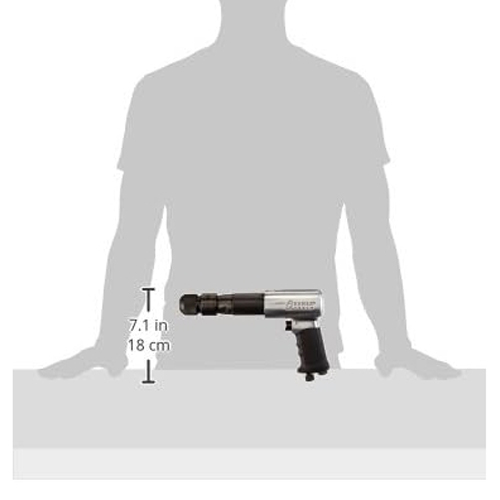

  • Tool Length: 8.88 inches
  • Weight: 4.6 pounds
  • System Compatibility / Application: Operate with regulated compressed air at 90 psi using a minimum 3/8 inch I.D. hose; use with 0.401 inch shank chisels; not a replacement part
• The Sunex SX243 Heavy Duty Long Barrel Air Hammer can also be referred to as long barrel air hammer, pneumatic air hammer, heavy duty air chisel, 0.401 inch shank air hammer, and automotive air hammer.

Sunex designs professional air tools for shop and field service. The SX243 long barrel air hammer combines high blow rate, an optimal 3.75 inch stroke, vibration damping, and a quick change chisel retainer to deliver fast, reliable performance on demanding jobs.

Q: What air supply do I need to run the SX243?
A: Use clean, regulated air at 90 psi with a minimum 3/8 inch I.D. hose; average air consumption is approximately 4 cfm, and the inlet thread is 1/4 inch NPT.

Q: Which chisels fit this air hammer?
A: It accepts standard 0.401 inch shank chisels and uses a quick change chisel retainer for fast swaps.

Q: What are the verified speed and stroke specifications?
A: The manufacturer rates it at up to 2300 blows per minute with a 3.75 inch stroke length.
