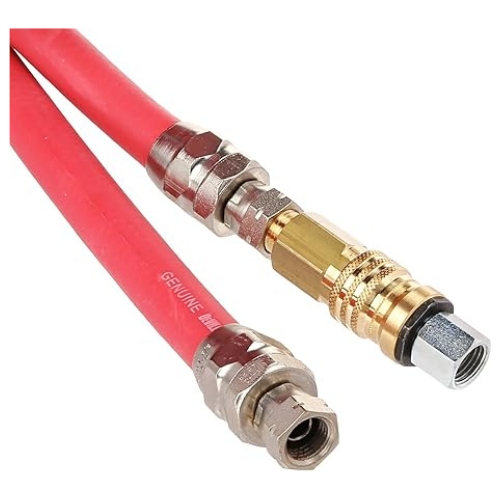

DeVilbiss HA-5867 HVLP Reusable Air Hose Assembly, 3/8" ID x 35' with High-Flow Coupler

DeVilbiss HA-5867 HVLP Reusable Air Hose Assembly, 3/8" ID x 35' with High-Flow Coupler

• This DeVilbiss HA-5867 air hose assembly is designed for HVLP and high-volume spray equipment, featuring a 3/8" inner-diameter hose, 35? length, synthetic-rubber cover and high-flow quick-disconnect coupler set.
• Features:
  • Synthetic-rubber hose with high-tensile-strength braid and brick-red cover offers superior resistance to oil, ozone, weathering and abrasion - delivering long life in refinishing environments.
  • 3/8" inner diameter supports higher volume airflow requirements for automotive spray-gun setups where minimal pressure drop is critical.
  • Three-piece reusable swivel connection (1/4" NPS(f) threads) permits reuse and re-termination, reducing waste and replacement cost compared to crimp-only assemblies.
  • Includes high-flow quick-disconnect coupling set (parts HC-4719 quick disconnect and HC-4419 stem) for fast-change tool hookups and optimized air delivery in spray systems.
• Includes:
  • 35-foot hose assembly, 3/8" inner diameter
  • High-volume Quick Disconnect, part number HC-4719
  • Stem fitting, part number HC-4419
• Specifications:
  • Manufacturer: DeVilbiss Automotive Refinishing (Carlisle Fluid Technologies)
  • Part Number: HA-5867
  • Hose Inner Diameter: 3/8"
  • Hose Length: 35?
  • Connection Thread Size: 1/4" NPS(f) swivel
  • Cover Material: Synthetic rubber with braid reinforcement
  • Maximum Application Temperature: 150 °F
  • Connection Type: Three-piece reusable (nut, nipple and socket) compatible with reusable or permanent crimp termination
• The HA-5867 hose assembly can also be referred to as DeVilbiss 3/8-inch x 35 ft HVLP air-hose kit, DeVilbiss HA-5867 high-volume spray hose, DeVilbiss HVLP reusable air hose assembly, and DeVilbiss 220052/HA-5867 main hose assembly.

The DeVilbiss HA-5867 is a professional-grade high-volume air-hose assembly tailored for automotive refinishing applications where HVLP spray-gun performance depends on high-flow, low-loss air delivery; its rugged construction ensures durability in demanding shop conditions.

Q: Can this hose be cut to a shorter length or re-terminated with different fittings?
A: Yes. The three-piece reusable swivel connection allows re-termination, and the hose may be cut to a shorter length provided the termination is performed properly using the reusable coupling components.

Q: Is the HA-5867 suitable for ordinary shop air tools such as impacts and grinders?
A: While it can be used for general shop air-tool service, it is sized and optimized for HVLP spray-gun applications; for heavy-duty impact-oriented use you may select a hose rated specifically for that usage scenario.

Q: What should I check for durability and maintenance with this hose assembly?
A: Inspect the hose cover for abrasion, cracking or oil saturation, ensure the braid reinforcement remains intact, check that the quick-disconnect coupling remains clean and seals properly, and replace the hose if the cover shows signs of aging or the coupling fails to seat securely.
