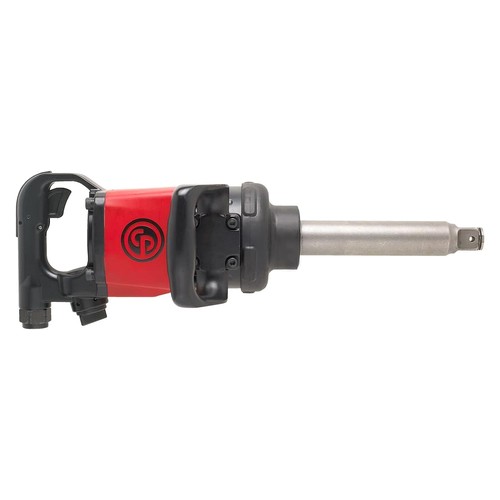

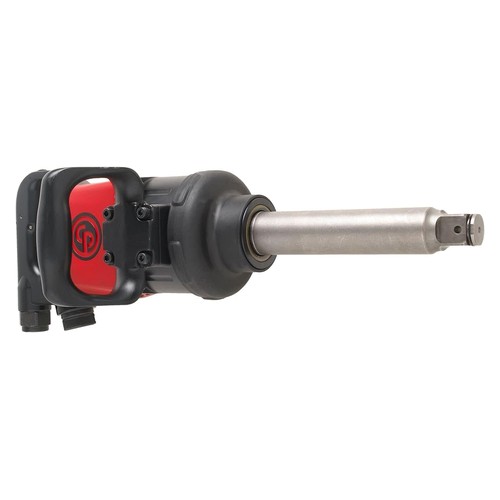

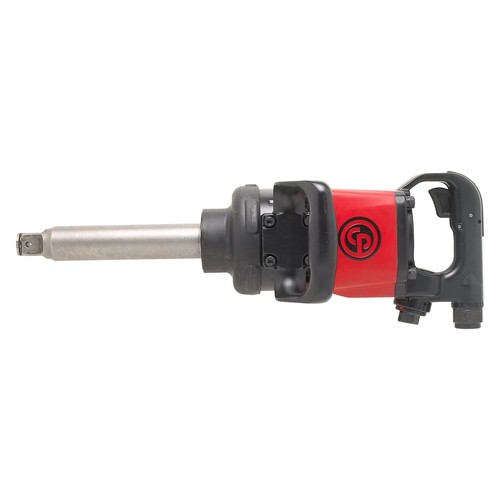

Chicago Pneumatic CP7782-6 1" Drive Air Impact Wrench, 6" Extended Anvil, 1920 ft-lb, 5200 RPM

Chicago Pneumatic CP7782-6 1" Drive Air Impact Wrench, 6" Extended Anvil, 1920 ft-lb, 5200 RPM

• The Chicago Pneumatic CP7782-6 is a heavy-duty 1" drive pneumatic impact wrench designed for tire service and other high-torque fastening applications. Its 6" extended anvil provides additional reach, while the reinforced pinless rocking dog impact mechanism, metal housing, D-handle, and side handle support durability and control during demanding professional use.
• Features:
  • High-torque pneumatic design provides up to 1920 ft-lb / 2600 Nm maximum reverse torque according to the supplied product information.
  • 6" extended anvil provides additional reach for compatible truck and tire service applications.
  • Reinforced pinless rocking dog impact mechanism supports durability under demanding workloads.
  • Rear-mounted power regulator provides 3 forward and 3 reverse power settings.
  • D-handle and side handle provide additional control during high-torque operation.
  • Integrated clutch housing cover helps protect the tool and surrounding work surfaces.
• Compatible Applications:

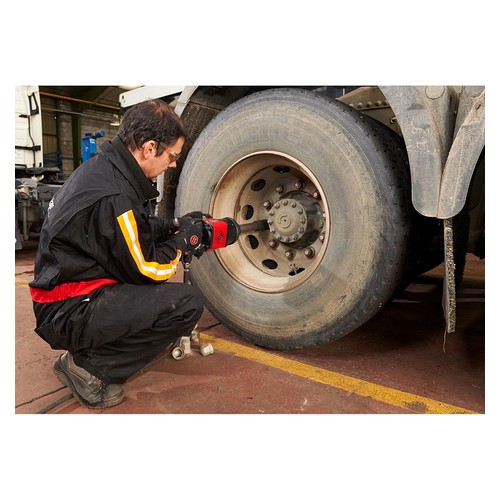

  • Truck Tire Service
  • Commercial Tire Changing
  • Heavy-Duty Automotive Repair
  • Industrial Fastener Service
  • High-Torque Nut and Bolt Removal
• Specifications:
  • Manufacturer: Chicago Pneumatic
  • Part Number: CP7782-6
  • MPN: CP7782-6
  • Product Type: Pneumatic Impact Wrench
  • Output Drive Size: 1"
  • Output Drive Type: Square
  • Anvil Length: 6"
  • Handle Type: D-Handle
  • Side Handle: Yes
  • Free Speed: 5200 RPM
  • Blows Per Minute: 500
  • Impact Mechanism: Pinless Rocking Dog
  • Minimum Forward Working Torque: 368 ft-lb
  • Maximum Forward Working Torque: 1470 ft-lb
  • Maximum Reverse Torque: Supplied Information Lists 1910 ft-lb and 1920 ft-lb / 2600 Nm
  • Torque Limited: No
  • Air Inlet: 1/2"
  • Maximum Dynamic Air Working Pressure: 91 PSI
  • Minimum Hose Diameter at 16 ft.: 0.5"
  • Minimum Hose Diameter at 5 m: 13 mm
  • Length: 14.57"
  • Weight: 22.2 lbs.
  • Body Material: Aluminum
  • Clutch Housing Material: Steel
  • Clutch Lubrication: Grease
  • Output Retainer Type: Dual
  • Starting System: Trigger
  • Sound Pressure: 100 dB(A)
  • Sound Power: 111 dB(A)
  • Vibration: 7.8 m/s2
  • Vibration Uncertainty: 5.9 ft/s2
  • ATEX Rated: No
  • Application: Tire Changing and Heavy-Duty Fastener Service
• This item is also often referred to as a 1" air impact wrench, heavy-duty truck impact wrench, extended anvil impact gun, tire service impact wrench, and Chicago Pneumatic CP7782-6 impact wrench.

Chicago Pneumatic manufactures pneumatic and cordless power tools, impact wrenches, grinders, drills, sanders, and related equipment for automotive, industrial, maintenance, and heavy-duty service applications.

Q: What drive size does the Chicago Pneumatic CP7782-6 use?
A: It uses a 1" square drive with a 6" extended anvil.

Q: What is the free speed of the CP7782-6?
A: The impact wrench has a listed free speed of 5200 RPM.

Q: What air pressure does the CP7782-6 require?
A: The supplied specifications list a maximum dynamic air working pressure of 91 PSI.

Q: What is the maximum reverse torque?
A: The supplied information is inconsistent, listing both 1910 ft-lb and 1920 ft-lb / 2600 Nm as the maximum reverse torque. The final published specification should be verified before listing a single value.
