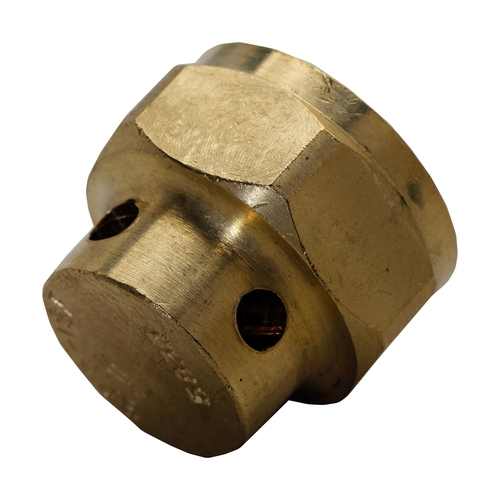

OTC 16230 Safety Valve Assembly, ASME Rupture Disc for Hydraulic Tester

OTC 16230 Safety Valve Assembly, ASME Rupture Disc for Hydraulic Tester

• OTC 16230 is a safety relief valve disc assembly for hydraulic tester inlet and outlet pressure protection. The disc ruptures to relieve oil pressure before damage may occur when tested pressure exceeds the listed burst range.
• Features:
  • Safety relief disc assembly protects the inlet and outlet sides of the hydraulic tester from excessive pressure.
  • Disc rupture relieves oil pressure before damage may occur.
  • The Safety Relief Valve Disc Assembly must be replaced after it has burst.
  • Rupture disc and safety valve assembly configuration is used for hydraulic flow meter service.
  • Safety disc burst range for the 50 Gallons per Minute tester is 5510/6093 Pounds per Square Inch at 60 Degrees Fahrenheit and 5250/5835 Pounds per Square Inch at 160 Degrees Fahrenheit.
• Specifications:
  • Manufacturer: OTC
  • Part Number: 16230
  • UPC: 731413078415
  • Product Name: Safety Valve Assembly
  • Product Type: Safety relief valve disc assembly
  • Standard: ASME
  • Application: Hydraulic tester pressure protection
  • Safety Function: Ruptures to relieve oil pressure when tested pressure exceeds the listed range
  • Safety Disc Burst Range for 50 Gallons per Minute Tester: 5510/6093 Pounds per Square Inch at 60 Degrees Fahrenheit; 5250/5835 Pounds per Square Inch at 160 Degrees Fahrenheit
  • Alternate Part Numbers: OTC-16230, OT16230, RA16230, OTC16230
  • Packaging Type: Each
  • Quantity: 1 safety valve assembly
• The OTC 16230 Safety Valve Assembly can also be referred to as safety relief valve disc, rupture disc assembly, hydraulic tester safety valve, OTC 16230 valve, and ASME safety valve assembly.

OTC is a Bosch brand in the Automotive Service Solutions business unit, supplying professional vehicle diagnostic equipment, fuel maintenance products, service tools, and shop equipment.

Q: What does the OTC 16230 protect on the hydraulic tester?
A: It protects the inlet and outlet sides of the hydraulic tester from excessive pressure.

Q: What happens when tested pressure exceeds the listed range?
A: The disc ruptures and relieves oil pressure before damage may occur.

Q: Is the disc assembly reusable after it bursts?
A: No. The Safety Relief Valve Disc Assembly must be replaced after it has burst.
