OTC 1729 Engine Support Bar, Subframe-Mounted Ford Support Kit

OTC 1729 Engine Support Bar, Subframe-Mounted Ford Support Kit

• OTC 1729 is an engine support bar kit for service procedures that require the engine to be supported from below. It mounts to the vehicle sub-frame and uses an adjustable support pad during automatic and manual transmission applications on select Ford vehicles.
• Features:
  • Adjustable pad supports the bottom of the engine.
  • Adjustable subframe mount fits various sub-frame designs.
  • Applications include 2011-2019 Ford Fiesta, 2012-2018 Ford Focus, 2013-2019 Ford Escape, and 2014 and later Ford Transit Connect.
  • For automatic and manual transmission applications on listed Ford vehicles.
  • Similar to Ford OE part numbers 303-1554 and 303-1554-05.

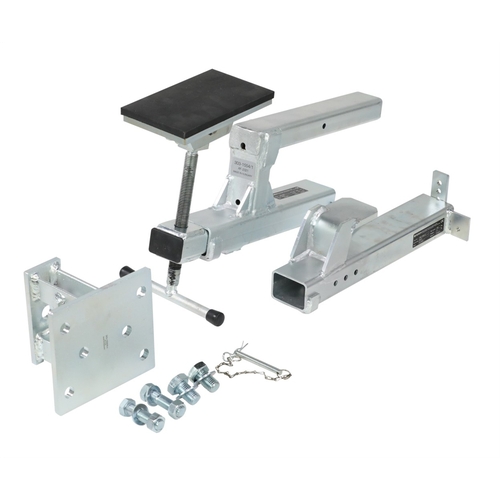

• Includes:
  • Engine Support Lifting Bar
  • Engine Stand Adapter
  • Spindle
  • Support Plate
  • Retaining Plate
  • Hex Flange Bolt
  • Retaining Pin
  • Adapter Plate
  • Bolt and Washer (4X)
  • Nut (2X)
• Specifications:
  • Manufacturer: OTC
  • Part Number: 1729
  • UPC: 731413598456
  • Product Name: Engine Support Bar
  • Product Type: Subframe-mounted engine support bar kit
  • Compatible Vehicles: 2011-2019 Ford Fiesta; 2012-2018 Ford Focus; 2013-2019 Ford Escape; 2014 and later Ford Transit Connect
  • Transmission Applications: Automatic and manual
  • Similar Ford OE Tools: 303-1554, 303-1554-05
  • Product Dimensions: 28 Inches x 19 Inches x 16 Inches
  • Product Weight: 52.9 Pounds
  • Packaging Type: Each
  • Quantity: 1 engine support bar kit
• The OTC 1729 Engine Support Bar can also be referred to as Ford engine support bar, subframe engine support tool, engine support fixture, transmission service support bar, and OTC 1729 support kit.

OTC is a Bosch Automotive Service Solutions brand offering automotive diagnostics, shop equipment, underhood and undercar service tools, heavy duty tools, pullers, and hydraulic components for professional technicians.

Q: What Ford vehicles are listed for the OTC 1729?
A: Listed applications include 2011-2019 Ford Fiesta, 2012-2018 Ford Focus, 2013-2019 Ford Escape, and 2014 and later Ford Transit Connect.

Q: What transmission applications are listed?
A: OTC lists the 1729 for automatic and manual transmission applications on the listed Ford vehicles.

Q: What Ford OE tools is the OTC 1729 similar to?
A: OTC lists it as similar to Ford OE part numbers 303-1554 and 303-1554-05.
