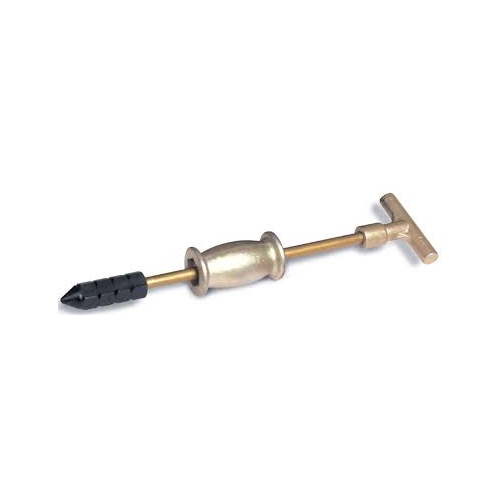

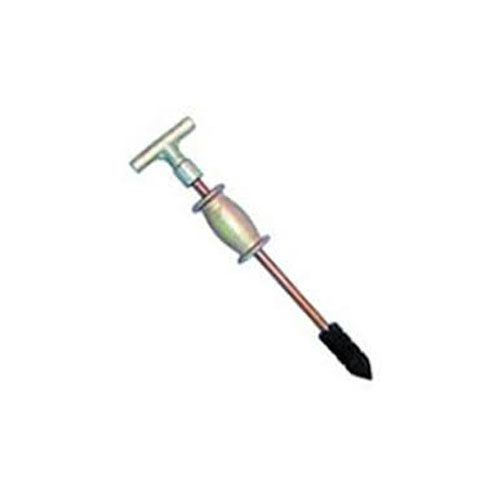

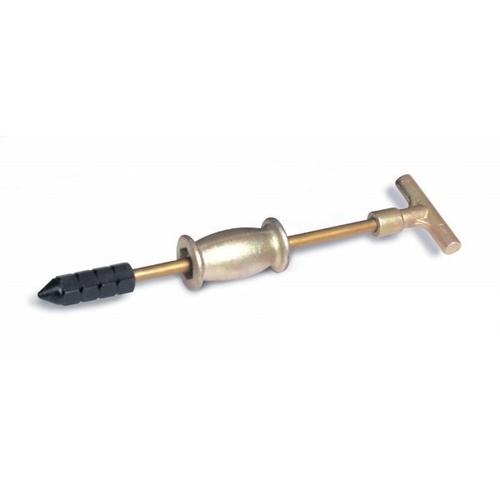

H&S AutoShot UNI-1016 Slide Hammer Complete, Twist-to-Lock Head, 3-Jaw Chuck, for UNI-1001 and UNI-1002 Pulling Studs

H&S AutoShot UNI-1016 Slide Hammer Complete, Twist-to-Lock Head, 3-Jaw Chuck, for UNI-1001 and UNI-1002 Pulling Studs

• H&S AutoShot UNI-1016 is a Uni-Spotter stud pulling slide hammer designed to grip pulling studs and apply controlled pulling force during collision repair. It uses a 3-jaw chuck and a twist-to-lock head for faster stud engagement, and it is specified for UNI-1001 and UNI-1002 pulling studs.
• Features:
  • 3-jaw chuck provides holding power on pulling studs to help reduce slippage during heavy pulls.
  • Twist-to-lock head speeds up stud engagement so you can move from pull to pull with fewer interruptions.
  • Ductile cast iron spool supports repeated slide impacts for consistent pulling force in shop use.
  • High-strength steel shaft helps maintain alignment and durability under pulling loads.
  • Designed for UNI-1001 and UNI-1002 pulling studs, supporting Uni-Spotter stud pulling applications.
• Specifications:
  • Manufacturer: H&S AutoShot
  • Part Number: UNI-1016
  • Alternate Part Numbers / Cross References: 1016, HS-UNI-1016, HSA1016
  • Product Type / Function: Stud pulling slide hammer
  • Chuck Type: 3-jaw chuck
  • Head Type: Twist-to-lock
  • Spool Material: Ductile cast iron
  • Shaft Material: Steel
  • Product Weight: 5.6 lb
  • Overall Dimensions: 18 inches x 4 inches x 4 inches
  • System Compatibility or Application: Designed for use with UNI-1001 and UNI-1002 pulling studs for Uni-Spotter stud pulling applications
  • Quantity: 1 slide hammer
• The UNI-1016 Slide Hammer Complete can also be referred to as a stud pulling slide hammer, an auto body dent pull slide hammer, a twist-to-lock slide hammer, a 3-jaw chuck slide hammer, and a Uni-Spotter slide hammer.

H&S AutoShot manufactures collision repair equipment and accessories used in automotive body shops and related service operations. The brand product lines include stud welding dent pulling systems, dent repair tools, and shop equipment distributed through authorized channels.

Q: Which pulling studs is this slide hammer designed to use?
A: It is specified for UNI-1001 and UNI-1002 pulling studs used in Uni-Spotter stud pulling applications.

Q: How does the 3-jaw chuck connect to the stud?
A: Position the chuck over the installed stud, then engage the chuck so the jaws clamp the stud before applying pull force with the slide weight.

Q: What does the twist-to-lock head do during use?
A: The twist-to-lock head is designed to speed up securing and releasing the chuck on the stud, helping you move between pulls more quickly.

Q: What maintenance helps keep the chuck working properly?
A: Keep the chuck area clean and free of debris so the jaws can seat fully on the stud, and inspect the chuck and shaft for wear before use.
