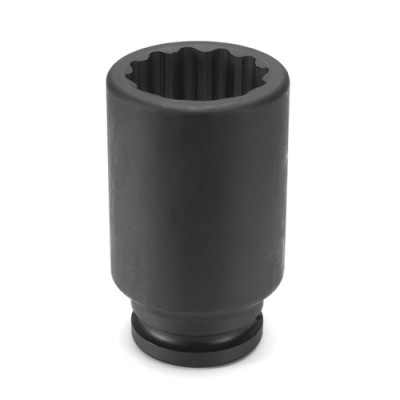

Grey Pneumatic 3136D 3/4" Drive x 1-1/8" Deep Length Impact Socket, 12 Point

Grey Pneumatic 3136D 3/4" Drive 1-1/8" Deep Impact Socket, 12-Point, Chrome-Molybdenum Steel

• The Grey Pneumatic 3136D is a 3/4" drive, 1-1/8" deep-length impact socket with a 12-point design for automotive, truck, industrial, maintenance, and heavy-duty fastening applications. Its deep socket profile provides additional reach for recessed fasteners and extended studs, while its impact-rated construction is designed for use with compatible high-torque impact tools.
• Features:
  • 1-1/8" deep impact socket with 3/4" drive.
  • 12-point geometry for compatible 12-point fasteners.
  • Deep-length design provides additional reach for recessed fasteners and extended studs.
  • Designed for use with compatible impact wrenches.
  • Grey Pneumatic Shape III socket configuration.
  • Uses replaceable retaining pin and O-ring components.
  • Packaged in a poly bag with barcode.
  • Backed by a lifetime warranty.
• Compatible Applications:
  • Automotive Repair
  • Heavy-Duty Truck Service
  • Industrial Maintenance
  • Mechanical Assembly
  • Impact Wrench Applications
  • Compatible 1-1/8" 12-Point Fasteners
• Replacement Components:
  • Retaining Pin: 3221
  • O-Ring: 3212
  • R1 Component: 3111
• Dimensions:
  • Shape: III
  • A: 1.73"
  • B: 1.75"
  • C - Bolt Clearance Depth: 2.76"
  • D - Hex Depth: 1.14"
  • E - Overall Length: 3.74"
• Specifications:
  • Manufacturer: Grey Pneumatic Corp.
  • Part Number: 3136D
  • MPN: 3136D
  • Product Type: Deep Impact Socket
  • Drive Size: 3/4"
  • Socket Size: 1-1/8"
  • Point Count: 12-Point
  • Socket Length: Deep
  • Socket Shape: III
  • Measurement System: SAE
  • Material: Chrome-Molybdenum Alloy Steel
  • Overall Length: 3.74"
  • Hex Depth: 1.14"
  • Bolt Clearance Depth: 2.76"
  • Dimension A: 1.73"
  • Dimension B: 1.75"
  • Retaining Pin: 3221
  • O-Ring: 3212
  • R1 Component: 3111
  • Item Weight: 1.73 lb.
  • Packaging: Poly Bag with Barcode
  • Warranty: Lifetime Warranty
• This item is also often referred to as a 1-1/8" impact socket, 3/4" drive deep socket, 12-point impact socket, deep SAE impact socket, heavy-duty impact socket, and Grey Pneumatic 3136D socket.

Grey Pneumatic manufactures impact sockets, socket sets, extensions, adapters, and related professional impact tools for automotive, industrial, maintenance, construction, and heavy-duty service applications.

Q: What size is the Grey Pneumatic 3136D?
A: It is a 1-1/8" deep impact socket with a 3/4" drive.

Q: Is the Grey Pneumatic 3136D a 6-point or 12-point socket?
A: It is a 12-point impact socket.

Q: What is the overall length of the Grey Pneumatic 3136D?
A: The supplied manufacturer diagram lists an overall length of 3.74".

Q: What retaining components are used with the Grey Pneumatic 3136D?
A: The supplied manufacturer information lists retaining pin 3221, O-ring 3212, and R1 component 3111.
