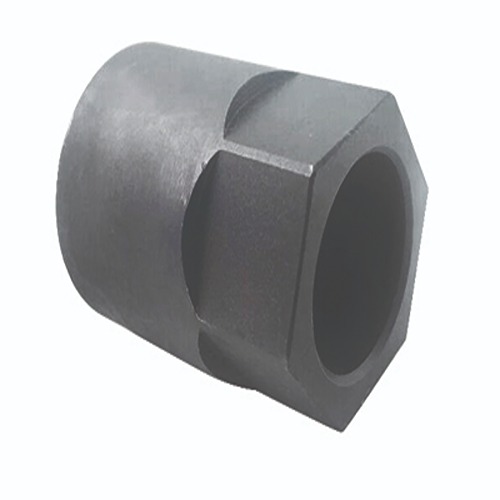

CTA Tools 1027 High Pressure Rail Adapter Socket

CTA Tools 1027 High Pressure Rail Adapter Socket

• The CTA Tools 1027 High Pressure Rail Adapter Socket is designed to remove and install the fuel injector adapter from the high pressure rail when servicing O-rings on select International and Navistar diesel applications. This specialty socket features a 27mm / 1-1/16" outer hex, 20mm diameter center hole, and 1/2" square drive for use on compatible DT466, DT570, HT570, MaxxForce, N9, and N10 engine platforms.
• Features
  • High Pressure Rail Service Tool – Removes and installs the fuel injector adapter from the high pressure rail.
  • O-Ring Service Application – Designed to support service of fuel injector adapter O-rings.
  • International Truck Compatibility – Services International trucks including DT466 / 570 and HT570 applications.
  • 27mm Outer Hex – Features a 27mm / 1-1/16" outer hex design.
  • 20mm Center Hole – Includes a 20mm diameter hole for proper fitment during service.
  • 1/2" Square Drive – Compatible with 1/2" drive tools for shop service use.
  • Navistar Interchange – Interchanges with Navistar ZTSE4725.
• Specifications
  • Manufacturer: CTA Tools
  • Part Number: 1027
  • Product Type: High Pressure Rail Adapter Socket
  • Service Application: Fuel Injector Adapter Removal and Installation
  • System Application: High Pressure Oil / Fuel System
  • Outer Hex Size: 27mm / 1-1/16"
  • Center Hole Diameter: 20mm
  • Drive Size: 1/2" Square Drive
  • Interchange: Navistar ZTSE4725
  • Engine Applications: DT466, DT570, HT570, MaxxForce DT, MaxxForce 9, MaxxForce 10, N9, N10
• Applicable Vehicles and Engines
  • International DT466 / 570 and HT570
  • 2004-2007 DT466
  • 2007 MaxxForce DT, MaxxForce 9, and MaxxForce 10
  • 2010 MaxxForce DT, MaxxForce 9, and MaxxForce 10
  • 2013 N9 with SCR and N10 with SCR
  • Bus, Medium Duty, Heavy Duty, and Severe Series applications
  • 9000i Series
  • AC / UC and HT / TC Commercial Bus
  • AE, BE, CE, RE, and Integrated Bus applications
  • CityStar / CF Series, CXT, MXT, DuraStar, EStar, LoadStar, PayStar, TerraStar, TranStar, WorkHorse, and WorkStar
• Applications
  • Fuel injector adapter removal
  • Fuel injector adapter installation
  • High pressure rail service
  • O-ring service
  • High pressure oil and fuel system repair
  • Cylinder head and valve train service
  • International and Navistar diesel truck maintenance
• The CTA Tools 1027 High Pressure Rail Adapter Socket is also commonly referred to as a fuel injector adapter socket, high pressure rail socket, Navistar ZTSE4725 socket, International DT466 fuel rail tool, MaxxForce fuel injector adapter tool, and CTA 1027 diesel service socket.

Q: What is the CTA Tools 1027 used for?
A: It is used to remove and install the fuel injector adapter from the high pressure rail when servicing O-rings.

Q: What drive size does this socket use?
A: The CTA 1027 uses a 1/2" square drive.

Q: What are the socket dimensions?
A: It has a 27mm / 1-1/16" outer hex and a 20mm diameter center hole.

Q: What is the Navistar interchange number?
A: The listed interchange number is Navistar ZTSE4725.
