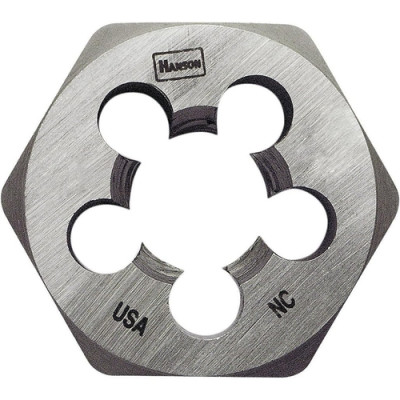

IRWIN 8463 Hanson Hexagon Self-Aligning Die 7/8-14 NF

IRWIN 8463 Hanson Hexagon Self-Aligning Die 7/8-14 NF

• The IRWIN 8463 (Hanson line) is a 7/8-14 NF self-aligning hexagon die used to cut or restore external threads on shafts, rods, and bolts.
• Features:
  • Self-aligning plate design — helps prevent cross-threading and ensures accurate alignment
  • Hexagon die body — allows use with standard hex die stocks or wrenches
  • High-carbon (carbon) steel construction — provides strength and durable cutting performance
  • Right-hand thread orientation — standard thread direction for general use
  • Marked identification (thread size and NF spec) — quick verification in the tool rack
• Specifications: <
  • Manufacturer: IRWIN / Hanson
  • Part Number: 8463
  • Thread Size / Pitch: 7/8-14 (NF, National Fine)
  • Die Type: Self-Aligning Hexagon Die
  • Material: Carbon steel
  • Hexagon Outer Size (across flats): 1-13/16 inch
  • Die Thickness: 3/8 inch
• The IRWIN 8463 die can also be referred to as 7/8-14 hex die, self-aligning threading die, Hanson hex die 8463, external thread die 7/8 NF, and IRWIN threading tool.

IRWIN’s 8463 self-aligning die is engineered for dependable thread cutting and repair. The self-aligning plate reduces the risk of cross threads, while the sturdy carbon steel design ensures resilience during repeated use.

Q: Why use a self-aligning die instead of a fixed die?
A: The self-aligning plate helps to center the die over the workpiece, reducing cross-threading and improving thread accuracy—especially useful when starting threads manually.

Q: What type of materials can this die cut?
A: It is suitable for mild steel, aluminum, brass, and other non-hardened metals. For hardened or high tensile alloys, use a specialty die designed for those materials.

Q: What tools are needed to use this die?
A: You can use a compatible hex die stock or a wrench that fits the hexagon body. Ensure you use proper cutting oil and take light passes for best results.
