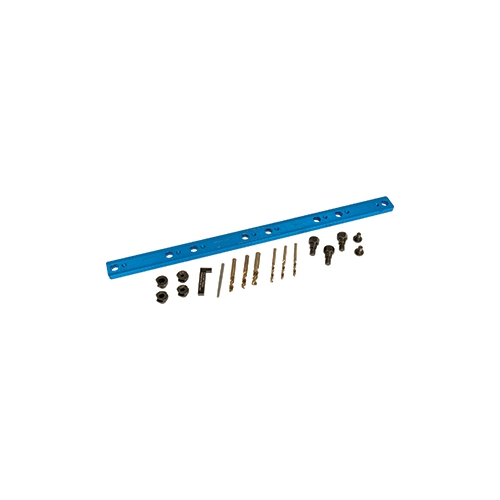

Lisle 72350 Manifold Drill Template for Ford 7.3 Liter Diesel, Broken Exhaust Manifold Bolt Removal

Lisle 72350 Manifold Drill Template for Ford 7.3 Liter Diesel, Broken Exhaust Manifold Bolt Removal

• Lisle 72350 removes broken exhaust manifold bolts on Ford 7.3 liter diesel motors without damaging the cylinder head. Tapered bolts center the base plate over bolt holes, and the drill depth gauge makes sure the water jacket is not pierced.
• Features:
  • Removes broken exhaust manifold bolts on Ford 7.3 liter diesel motors without damaging the cylinder head.
  • Tapered bolts center the base plate over bolt holes.
  • Slip fit bushing moves from hole to hole without moving the base plate.
  • Drill depth gauge makes sure the water jacket is not pierced.
  • Includes bushing to drill to tap size when the extractor cannot be used.
• Includes:
  • 68690 stud extractor
  • 71530 3/16" cobalt drill
  • 71540 17/64" cobalt drill
  • 72310 0.332 Q cobalt drill
  • 72320 3/16" drill bushing, large
  • 72330 17/64" drill bushing, large
  • 72340 0.332 Q drill bushing, large
  • 72360 lock screw
  • 72370 10mm tap guide
  • 72380 Ford 7.3 liter drill plate
  • 72390 Ford 7.3 liter drill depth gauge
  • 72410 alignment bolt
  • 72420 case for 72350 and 72400
• Specifications:
  • Manufacturer: Lisle
  • Part Number: 72350
  • UPC: 083045723509
  • Product Type: Manifold Drill Template
  • Application: Broken exhaust manifold bolt removal
  • Engine Compatibility: Ford 7.3 liter diesel motors
  • Guide System: Tapered bolts and slip-fit bushing
  • Depth Control: Drill depth gauge
  • Extractor: Screw extractor
  • Tap Preparation: Bushing to drill to tap size
• The Lisle 72350 Manifold Drill Template can also be referred to as Ford 7.3 liter manifold drill template, exhaust manifold bolt removal tool, Ford diesel manifold bolt extractor, broken manifold bolt drill guide, and diesel exhaust bolt template.

Lisle Corporation is a family-owned manufacturer and marketer of specialty automotive tools, mechanic's creepers, lubrication products, and tire products. The company has operated from Clarinda, Iowa, since 1903.

Q: What engine application is the Lisle 72350 for?
A: It is for Ford 7.3 liter diesel motors.

Q: How does the base plate stay centered over the bolt holes?
A: Tapered bolts center the base plate over the bolt holes, and the slip-fit bushing moves from hole to hole without moving the base plate.

Q: What is used when the extractor cannot be used?
A: The included bushing is used to drill to tap size when the extractor cannot be used.
