OTC 7509 Inner CV Joint Puller Kit, Includes Slide Hammer and CV Joint fork

OTC 7509 Inner CV Joint Puller Kit, Includes Slide Hammer and CV Joint fork

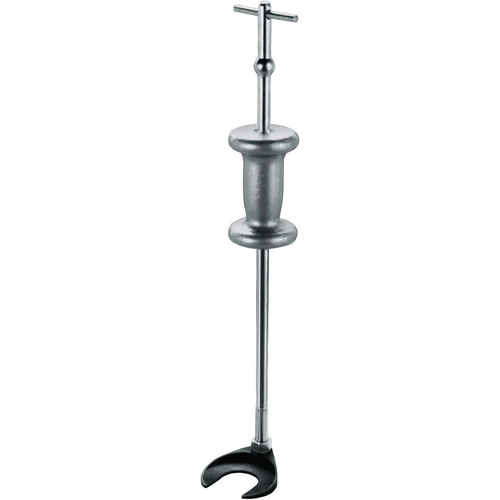

• The BOSCH OTC 7509 inner CV joint puller kit is designed to remove inner CV joints held by axle shaft retaining rings by pulling the axle assembly from the transaxle using a slide hammer and fork. It helps avoid damage that can occur from prying methods, and it is commonly used on many ford applications such as Taurus and Sable.
• Features:
  • Inner CV joint puller design targets axle assemblies retained by internal retaining rings for controlled removal
  • Slide hammer operation provides a straight, even pull to help avoid damage to aluminum transmission cases compared with prying

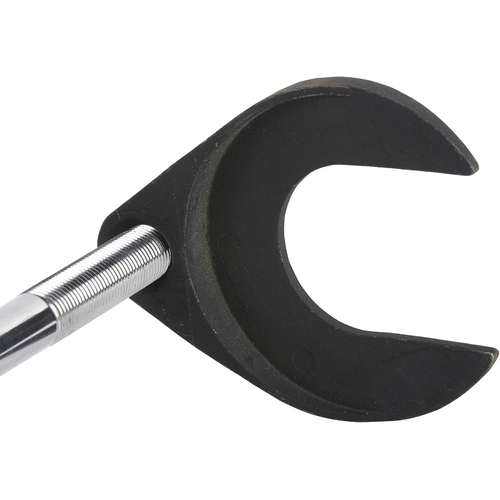

  • CV joint fork interfaces with the inner CV joint for secure engagement during pulling
  • Complete kit format includes the core components needed for removal without purchasing separate fork and slide hammer parts
  • Designed for drive axle service work, including many ford inner CV joint applications such as Taurus and Sable
• Includes:
  • Slide Hammer (1155)

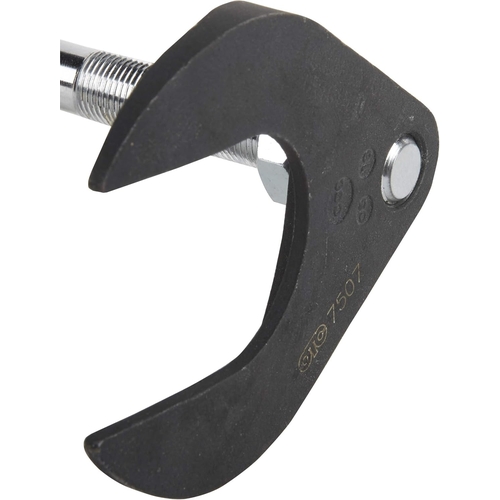

  • CV Joint fork (7507)
• Specifications:
  • Manufacturer: BOSCH (OTC)
  • Part Number: 7509
  • MPN: 7509
  • UPC: 731413011382
  • Product Name: Inner CV Joint Puller
  • Category: Specialty Tools
  • Subcategory: Drive Axle
  • Product Type / Function: Inner CV joint puller kit for axle assembly removal
  • Overall Length: 25.2"
  • System Compatibility or Application: Designed to remove inner CV joints held by axle shaft retaining rings by pulling the axle assembly from the transaxle, using the included slide hammer and CV joint fork
• The Inner CV Joint Puller Kit can also be referred to as inner CV joint puller, CV axle puller tool, transaxle axle removal tool, slide hammer CV joint puller, and retaining ring CV joint puller.

OTC manufactures professional automotive service tools and equipment for diagnostics and repair operations, supporting driveline, chassis, and general service workflows in professional shop environments.

Q: What type of CV joint is this tool designed to remove?
A: It is designed for inner CV joints that are held in with axle shaft retaining rings and require pulling the axle assembly from the transaxle.

Q: What comes in the complete kit?
A: The kit includes a slide hammer (1155) and a CV joint fork (7507).

Q: Why use this tool instead of prying?
A: The slide hammer provides a straight, even pull intended to help remove the axle assembly without damaging the aluminum transmission case or other components that can be harmed by prying methods.
