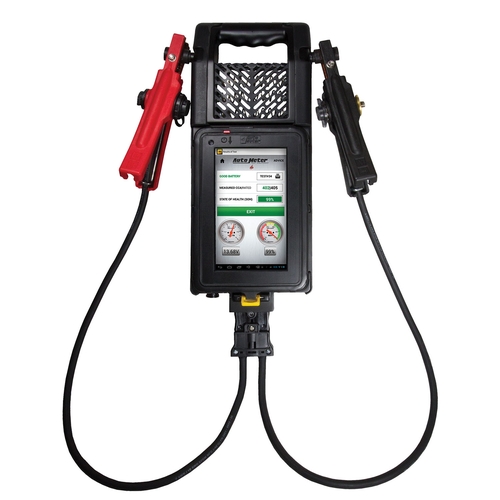

AutoMeter BCT-468, Wireless Heavy-Duty Truck Battery and Electrical System Tester, Removable 8" Tablet, 6/12 V Batteries, 12/24 V Systems

AutoMeter BCT-468, Wireless Heavy-Duty Truck Battery and Electrical System Tester, Removable 8" Tablet, 6/12 V Batteries, 12/24 V Systems

• The BCT-468 performs true-load battery, starter, alternator, cable voltage-drop, and preventive-maintenance testing for fleet and heavy-duty electrical diagnosis. The separable control and load modules communicate wirelessly for testing from inside or around the vehicle.
• Features:
  • Battery pack testing accommodates up to four batteries.
  • Quick PM testing covers the battery pack, starter, alternator output up to 450 A, and cable voltage drop.
  • Built-in non-contact IR battery temperature measurement.
  • Wi-Fi connectivity permits real-time data collection and use with optional AMPNET cloud data management services.
• Includes:
  • Ruggedized control module with 8" wide-view touchscreen interface
  • Wireless load module with rechargeable and replaceable lithium-ion battery
• Specifications:
  • Manufacturer: AutoMeter
  • Part Number: BCT-468
  • Battery Testing Voltage: 6 V and 12 V
  • Starting and Charging System Voltage: 12 V and 24 V
  • Battery Rating Range: 100 to 1600 CCA
  • Battery Pack Capacity: Up to 4 batteries
  • Alternator Test Output: Up to 450 A
  • Display: 8" Touchscreen
  • Battery Compatibility: AGM included
  • Connectivity: Wireless load module and Wi-Fi
• The AutoMeter BCT-468 Battery and Electrical System Tester can also be referred to as heavy-duty battery tester, truck electrical system analyzer, wireless battery load tester, tablet battery tester, and fleet electrical diagnostic tester.

Auto Meter Products, Inc. is based in Sycamore, Illinois and manufactures automotive and heavy-duty battery and electrical system testing, charging, and maintenance equipment. Its test equipment division serves automotive repair and vehicle fleet maintenance markets.

Q: How many batteries can the AutoMeter BCT-468 test as a pack?
A: It can test battery packs containing up to four batteries.

Q: Can the BCT-468 test lift-gate electrical systems?
A: Yes. Lift-gate testing requires adapters sold separately.

Q: Does the BCT-468 accept an inductive current probe?
A: Yes. The tester includes a port for an optional inductive current probe.
