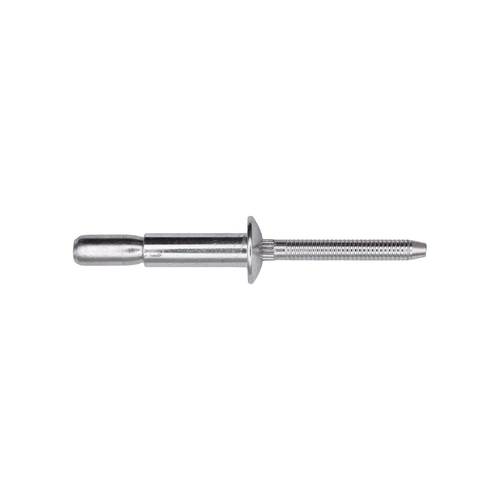

Auveco 12093 Monobolt Rivet, 1/4" Diameter, .350" to .625" Grip Range, Steel, Box of 100

Auveco 12093 Monobolt Rivet, 1/4" Diameter, .350" to .625" Grip Range, Steel, Box of 100

• Auveco 12093 is a steel Monobolt rivet for structural blind fastening applications. This boxed fastener has a steel rivet and steel mandrel construction with a zinc finish.
• Features:
  • Monobolt blind installation permits single-side installation in prepared holes.
  • Steel rivet and steel mandrel construction with zinc finish.
  • Stem locks mechanically into the Monobolt shell after installation.
  • Low profile head is designed to break flush within the specified grip range.
  • Installed shell expands into contact with the walls of the parent material.
• Specifications:
  • Manufacturer: Auveco
  • Part Number: 12093
  • UPC: 821641120939
  • Product Type: Monobolt Rivet
  • Rivet Diameter: 1/4"
  • Grip Range: .350" to .625"
  • Rivet Length: .855"
  • Hole Size: .261" to .272"
  • Flange Diameter: .515"
  • Flange Thickness: .100"
  • Material: Steel Rivet - Steel Mandrel
  • Finish: Zinc
  • Tensile Strength: 2,150 Pounds
  • Shear: 2,400
  • Mandrel Push-Out: 250
  • Packaging Type: Box
  • Quantity: 100
• The Monobolt Rivet can also be referred to as structural blind rivet, steel Monobolt fastener, 1/4" blind rivet, multi-grip rivet, and zinc steel rivet.

Auveco supplies automotive clips, fasteners, body hardware, electrical items, and specialty hardware for collision repair, mechanical repair, OEM, and industrial markets. The company has served the automotive aftermarket for more than 100 years.

Q: What material is used for Auveco 12093?
A: Auveco 12093 uses a steel rivet and steel mandrel construction with a zinc finish.

Q: How many Monobolt rivets are included in one box?
A: One box contains 100 Monobolt rivets.

Q: What hole size is specified for this Monobolt rivet?
A: The specified hole size range is .261" to .272".
