Auveco 8814 Extruded U Nut, 5/16-18 Thread, Panel Range 0.025" To 0.150", Box of 25

Auveco 8814 Extruded U Nut, 5/16-18 Thread, Panel Range 0.025" To 0.150", Box of 25

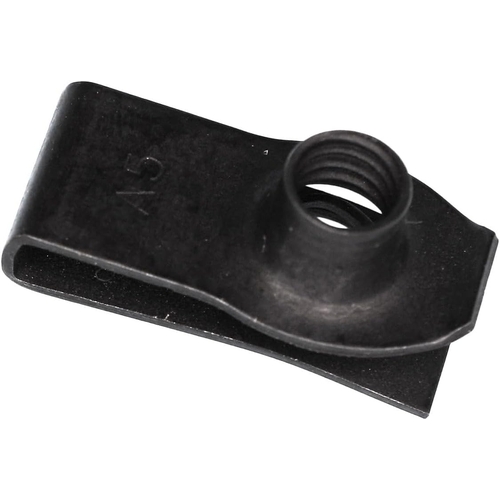

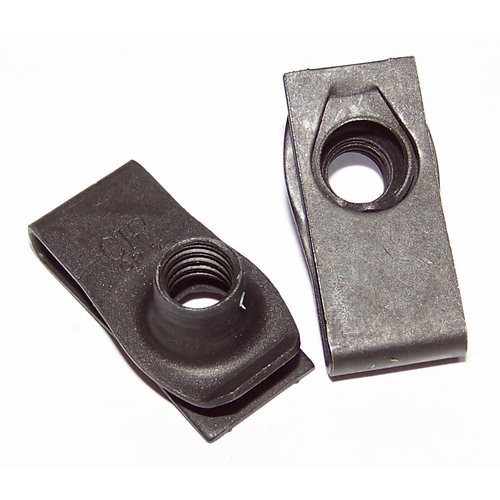

• Auveco 8814 is an extruded U nut designed to create a threaded attachment point on a panel edge for 5/16-18 screws. Made from spring steel with a phosphate finish, it fits panel thickness from 0.025" to 0.150" and is supplied as a box of 25.
• Features:
  • Screw size: 5/16-18 thread provides a captive threaded point for compatible 5/16-18 screws.
  • Panel range: 0.025" to 0.150" supports use across common sheet metal thicknesses.
  • Center of hole to edge: 27/32" helps align fastening points consistently along panel edges.
  • Spring steel construction supports clamp force and retention on the panel edge during assembly and service.
  • Phosphate finish helps provide corrosion resistance for automotive and general fastening environments.
• Specifications:
  • Manufacturer: Auveco
  • Part Number: 8814
  • MPN: 8814
  • UPC: 821641528698
  • Alternate Part Numbers / Cross References: 1494258, 379831-S
  • Category: Fasteners
  • Subcategory: Clip Nuts and U Nuts
  • Product Type / Function: Extruded U nut
  • Screw Size: 5/16-18
  • Panel Range: 0.025" to 0.150"
  • Center of Hole To Edge: 27/32"
  • Material / Finish: Spring steel, phosphate finish
  • Quantity: 25 per box
  • System Compatibility / Application: Designed to clip onto a panel edge and provide a threaded fastening point for 5/16-18 screws; commonly listed for GM and Ford applications and crosses to OEM numbers 1494258 and 379831-S.
• OEM Cross Reference:
  • Allied Bolt: 1836
  • Car-Pak: J02480
  • Clip Lizard: 150252
  • Crest Midwest: CRX316
  • Disco: 1836PK, 1836
  • Dorman: 3954, 45413, 700-525, 700-525BX
  • Ford: 379831-S, 45268-S2
  • GM: 1494258, 10008002, 12338146
  • Kent - Lawson: P39152
  • Kimball - Midwest: 10797
  • Lawson: P39152
  • NAPA: 6651052, 6653315
  • S&R: 300130
  • Shop Supplies: FN1836
  • W&E: 916
  • Wurth: 150159296
• Fitment:
  • Chevrolet Blazer: 1985, 1986, 1987, 1988, 1989, 1990, 1991
  • Chevrolet C10: 1985, 1986
  • Chevrolet C20: 1985, 1986
  • Chevrolet C30: 1985, 1986
  • Chevrolet G10: 1985, 1986, 1987, 1988, 1989, 1990
  • Chevrolet G20: 1985, 1986, 1987, 1988, 1989, 1990
  • Chevrolet G30: 1985, 1986, 1987, 1988, 1989, 1990
  • Chevrolet K10: 1985, 1986
  • Chevrolet K20: 1985, 1986
  • Chevrolet K30: 1985, 1986
  • Chevrolet P20: 1987, 1988, 1989
  • Chevrolet P30: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
  • Chevrolet R10: 1987
  • Chevrolet R20: 1987, 1988
  • Chevrolet R2500: 1987, 1988, 1989
  • Chevrolet R30: 1987, 1988
  • Chevrolet R3500: 1987, 1988, 1989, 1990, 1991
  • Chevrolet Suburban: 1985, 1986, 1987, 1988, 1989, 1990, 1991
  • Chevrolet V10: 1987
  • Chevrolet V20: 1987
  • Chevrolet V30: 1987, 1988
  • Chevrolet V3500: 1987, 1988, 1989, 1990, 1991
  • Ford Crown Victoria: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
  • GMC C1500: 1985, 1986
  • GMC C2500: 1985, 1986
  • GMC C3500: 1985, 1986
  • GMC G1500: 1985, 1986, 1987, 1988, 1989, 1990
  • GMC G2500: 1985, 1986, 1987, 1988, 1989, 1990
  • GMC G3500: 1985, 1986, 1987, 1988, 1989, 1990
  • GMC Jimmy: 1985, 1986, 1987, 1988, 1989, 1990, 1991
  • GMC K1500: 1985, 1986
  • GMC K2500: 1985, 1986
  • GMC K3500: 1985, 1986
  • GMC P2500: 1987, 1988, 1989
  • GMC P3500: 1987, 1988, 1989, 1990
  • GMC R1500: 1987
  • GMC V1500: 1987
  • GMC V2500: 1987
  • Lincoln Town Car: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
  • Mercury Grand Marquis: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
  • Mercury Marauder: 2003, 2004
• The Extruded U Nut can also be referred to as a clip nut, extruded U nut, 5/16-18 U nut, spring steel U nut, and phosphate finish clip nut.

Auveco supplies automotive fasteners and body hardware used in vehicle assembly and repair. The brand offers clips, nuts, retainers, and related fastening products designed to match common OEM style service requirements across multiple vehicle platforms.

Q: What screw size fits Auveco 8814?
A: It is designed for 5/16-18 screws.

Q: What panel thickness range does this U nut fit?
A: It fits panels from 0.025" to 0.150" thick.

Q: How many pieces are included in this SKU?
A: This SKU is supplied as 25 extruded U nuts per box.

Q: Is Auveco 8814 tied to any OEM references?
A: It is commonly cross referenced to OEM numbers 1494258 and 379831-S for application matching.
