Auveco 13007 Well Nut, #10-32 Thread, 0.500" Head Diameter, 25 Pack

Auveco 13007 Well Nut, #10-32 Thread, 0.500" Head Diameter, 25 Pack

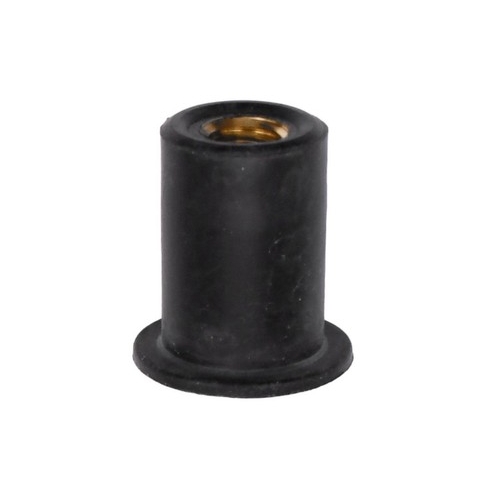

• Auveco 13007 Well Nut is a neoprene well nut with a captive brass nut designed for blind fastening in panels and similar mounting applications. This #10-32 threaded fastener features a 0.500" head diameter and is supplied as a 25 pack for repair, maintenance, and installation work.
• Features:
  • Neoprene body with captive brass nut helps provide vibration-resistant fastening in panel mounting applications.
  • #10-32 internal thread supports use with compatible machine screws for secure installation.
  • 0.500" head diameter and 3/8" hole size help match the well nut to the correct panel opening.
  • Grip range of 0.015" to 0.192" helps accommodate a range of panel thicknesses during installation.
  • Designed for blind fastening in panels and similar mounting applications, making it the correct well nut for those compatible repair and installation uses.
• Specifications:
  • Manufacturer: Auveco
  • Part Number: 13007
  • MPN: 13007
  • UPC: 821641130075
  • Product Name: Well Nut
  • Thread Size: #10-32
  • Material: Neoprene With Captive Brass Nut
  • Head Diameter: 0.500"
  • Head Thickness: 0.036"
  • Shank Diameter: 0.377"
  • Shank Length: 0.518"
  • Overall Length: 0.554"
  • Hole Size: 3/8"
  • Grip Range: 0.015" To 0.192"
  • Packaging Type: Pack
  • Quantity: 25 identical well nuts per pack
  • System Compatibility/Application: Designed for blind fastening in panels and similar mounting applications that require a #10-32 well nut with a 3/8" hole size
• The Well Nut can also be referred to as neoprene well nut, rubber well nut, captive brass well nut, panel mounting well nut, and #10-32 well nut.

Auveco is a long-established supplier of automotive and industrial fasteners, clips, body hardware, and specialty installation components. The brand is widely used in repair, maintenance, and OEM-style fastening applications across professional service environments.

Q: What type of screw does Auveco 13007 use?
A: It uses a #10-32 compatible machine screw with the internal captive brass nut.

Q: What hole size is required for this well nut?
A: The verified hole size for Auveco 13007 is 3/8".

Q: What panel thickness range does this well nut fit?
A: The verified grip range is 0.015" to 0.192".

Q: Is this item a kit or a pack of identical fasteners?
A: This item is a pack of 25 identical well nuts, so an Includes section is not used.
