Mastercool 69365 Refrigerant Recovery System Complete Recovery Kit, Twin Turbo

Mastercool 69365 Refrigerant Recovery System Complete Recovery Kit, Twin Turbo

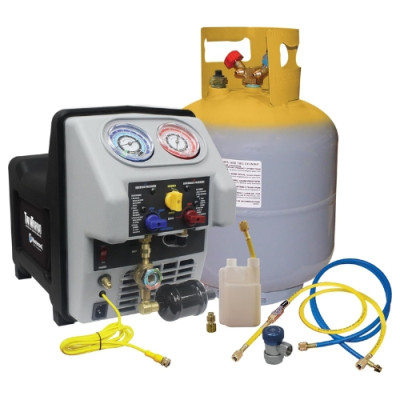

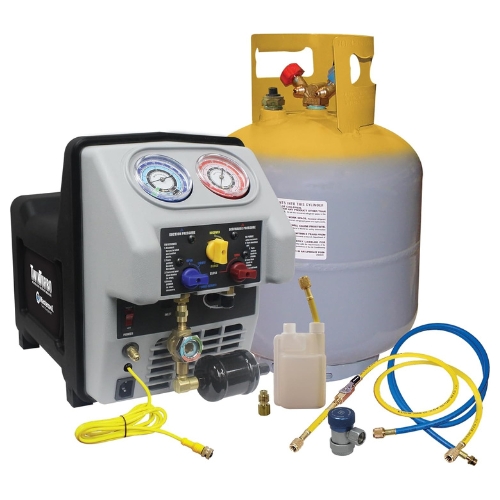

• The Mastercool 69365 Twin Turbo Refrigerant Recovery System is a high-capacity recovery machine built for fleet and heavy duty applications; it includes a 50 lb DOT-approved refrigerant cylinder with float switch, dual-piston oil-less compressor, filter dryer, sight glass, oil separation module, hoses and couplers.
• Features:
  • Dual piston oil-less compressor design delivers high recovery rates while reducing oil contamination risk.
  • 50 lb DOT-approved tank equipped with float switch that shuts down recovery at approximately eighty percent fill level.
  • Includes oil separation module, filter dryer, sight glass to monitor refrigerant quality and remove moisture or particles.
  • Safety high-pressure cut-off switch prevents overpressure; HDPE hard plastic case and bumper guards for durability.
  • Compatible with all CFC, HCFC, HFC refrigerants including R134a, R22, R410A, R404A; operating temperature range 32 to 122degreesF.
• Includes:
  • Recovery machine with oil separation module/filter dryer/sight glass
  • 50 lb DOT-approved recovery cylinder with float switch and 1/2 inch ACME fitting
  • Service hose, 60 inch, yellow color (hose 49264-69100)
  • Conversion hose, 72 inch, blue color (hose 98721)
  • Low-side coupler (82934)
  • 1/4 inch FFL x 1/2 inch ACME-male fitting (82634-M)
  • Oil drain bottle (92708-69100)
  • Cable for float switch (6533-01-A)
• Specifications:
  • Manufacturer: Mastercool
  • Part Number: 69365
  • Compressor Power: 1/2 HP dual-piston oil-less compressor
  • Power Supply: 115 V / 60 Hz
  • Operating Temperature Range: 32 to 122degreesF
  • Tank Capacity: 50 pounds, DOT-approved
  • Recovery Rates: for R134a - direct vapor up to .537 lb/min, direct liquid up to 4.72 lb/min, push-pull up to 11.68 lb/min; for R22 and R410A also similarly rated.
  • Material: high density polyethylene (HDPE) hard plastic exterior case with bumper guards
  • Compatible Refrigerants: All CFCs, HCFCs, and HFCs including R134a, R22, R404A, R410A
  • System Compatibility: Designed for professional fleet and automotive recovery of refrigerants; includes components for safe, full recovery operations.
• The Mastercool 69365 can also be referred to as Mastercool twin turbo recovery machine with tank, 50-lb refrigerant recovery system, fleet A/C recovery kit, high-capacity refrigerant recovery system, and oil-less recovery compressor set.

Mastercool is a family-owned manufacturer of professional HVAC/R and automotive A/C service tools and equipment, including manifolds, gauges, vacuum pumps, recovery units, leak detectors, and fittings.

Q: What safety feature prevents overfilling the tank?
A: A float switch on the 50-lb DOT cylinder is connected back to the recovery machine so it automatically stops recovery when the tank reaches about eighty percent full.

Q: What recovery rates can be expected for R134a and R410A?
A: For R134a you can expect up to .537 lb/min for direct vapor, 4.72 lb/min for direct liquid, 11.68 lb/min in push-pull; for R410A direct vapor up to .70 lb/min, direct liquid up to 7.7 lb/min, push-pull up to 20.2 lb/min.

Q: Which refrigerants is it compatible with?
A: It is compatible with all CFC, HCFC, and HFC refrigerants including commonly used R134a, R22, R404A, and R410A.
