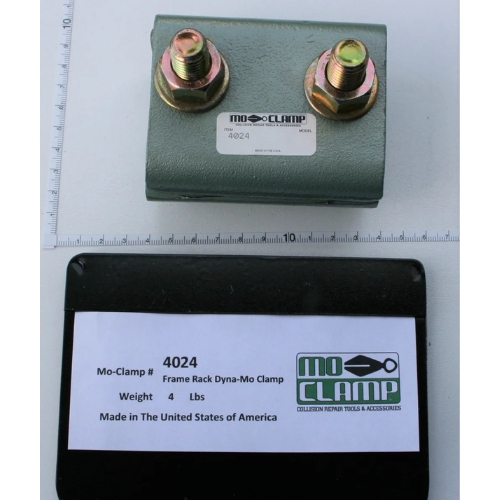

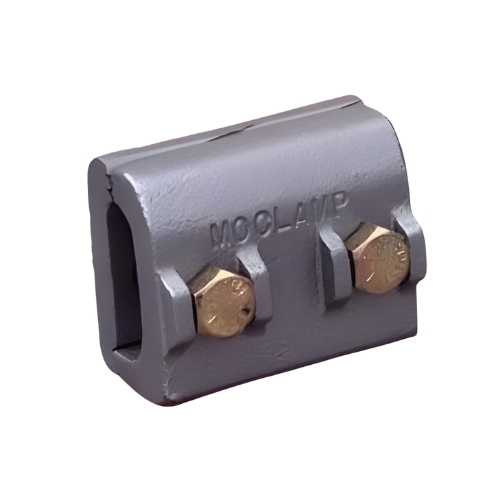

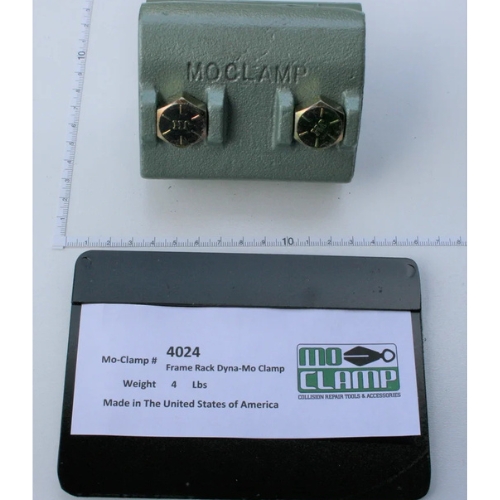

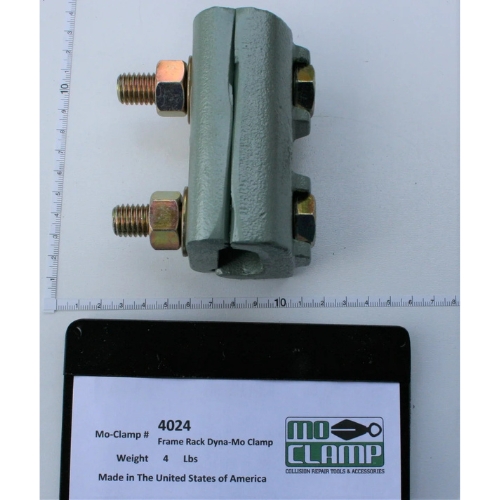

Mo-Clamp 4024 Frame Rack Dyna-Mo Clamp, 5 Ton Capacity, 3-1/2 Inch Gripping Surface, Heat Treated Steel

Mo-Clamp 4024 Frame Rack Dyna-Mo Clamp, 5 Ton Capacity, 3-1/2 Inch Gripping Surface, Heat Treated Steel

• Mo-Clamp 4024 Frame Rack Dyna-Mo Clamp is a heavy-duty collision repair clamp for frame racks, designed with a machine tooth pattern for secure bite. Rated at 5 ton capacity with a 3-1/2 inch gripping surface, it’s built for controlled pulls in structural straightening.
• Features:
  • 5 ton capacity supports common frame and structural pulls while maintaining clamp stability for consistent results
  • Machine tooth design increases bite on frame surfaces to reduce slippage during high-load pulls
  • 3-1/2 inch gripping surface provides broad contact for improved load distribution on frame rails
  • Heat treated steel construction enhances durability for repeated shop use
  • General-use frame rack clamp; not a replacement part for a specific vehicle or SKU
• Specifications:
  • Manufacturer: Mo-Clamp
  • Part Number: 4024
  • Capacity: 5 ton
  • Gripping Surface: 3-1/2 inch width
  • Weight: 4 lb
  • Material / Finish: Heat treated steel
  • System Compatibility / Application: Frame rack pulling clamp for structural straightening on frame machines; not a direct replacement part
  • Replacement Parts: 5200 Nut, Bolt and Washer; 840076 Spring
  • Quantity: 1 clamp
• The Frame Rack Dyna-Mo Clamp can also be referred to as frame rack clamp, collision repair pulling clamp, machine tooth frame clamp, auto body frame clamp, and heavy duty pulling clamp.

Mo-Clamp manufactures professional collision repair clamps, chains, and specialty pulling accessories for body and frame shops, focusing on durable steel tooling for reliable straightening performance.

Q: What is the load rating?
A: The clamp is rated at 5 ton when used within a properly rated pulling system.

Q: What is the gripping surface width?
A: 3-1/2 inch.

Q: Are there service parts available?
A: Yes. Mo-Clamp lists 5200 Nut, Bolt and Washer and 840076 Spring as replacement parts.
