Associated Equipment 12-1015 Battery Tester, Plastic Hand Held Conductance Analyzer, 12 Volt System

Associated Equipment 12-1015 Battery Tester, Plastic Hand Held Conductance Analyzer, 12 Volt System

• The Associated Equipment 12-1015 Battery Tester is a plastic hand-held conductance analyzer for 12 volt battery and electrical systems. It includes a built-in thermal printer, USB port, and stores up to 250 test series for diagnostics of batteries, starter, alternator, and ground circuits.
• Features:
  • Tests multiple 12 volt battery types: flooded, AGM, gel-cell, and enhanced flooded (start/stop) batteries.
  • Runs battery, starter, alternator, ground and diode ripple tests with printed results via onboard thermal printer.
  • 10-line LCD display for easy reading of measured values including CCA, internal resistance, voltage, and estimated remaining life.

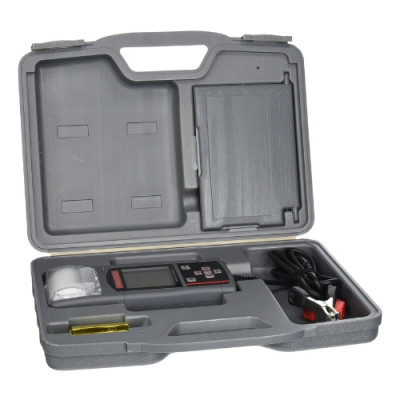

  • Includes carrying case, USB cable, software CD, and thermal paper roll for printing.
  • Memory function stores the last 250 test records with or without external power.
• Specifications:
  • Manufacturer: Associated Equipment
  • Part Number / Model: 12-1015
  • Material: Plastic housing
  • Operating Voltage: 9-15 Volts DC
  • Display: 10-line LCD
  • Battery Testing Current Range: 100-1700 CCA (depending on format used: CCA, EN, IEC, SAE, JIS, CA)
  • Memory Capacity: 250 test records
  • Includes: Built-in thermal printer, USB connection for PC, software CD, carrying case, thermal paper roll
  • System/Application: Battery, starter, alternator, ground circuit diagnostics
• The Associated Equipment 12-1015 can also be called hand-held battery tester, conductance battery analyzer, starter and alternator tester with printer, 12 volt electrical system diagnostic tool, and plastic portable battery tester.

The Associated 12-1015 battery tester delivers comprehensive diagnostics with conductance technology, thermal printing, and memory storage; it is portable and suited for automotive shops, service bays, or mobile technicians.

Q: What battery types can the 12-1015 test?
A: It can test flooded, AGM, gel cell, and enhanced flooded (start/stop) 12 volt batteries.

Q: Does the unit provide test history?
A: Yes, it can store up to 250 test results with or without power, and these can be printed or transferred to PC via USB.

Q: What functions besides battery testing does it do?
A: It also checks starter cranking, alternator charging (loaded and no load), ground circuit condition, and diode ripple.
