Electronic Specialties 315 Max Fuse Buddy Kit, 0-80 Amp, 48V DC

Electronic Specialties 315 Max Fuse Buddy Kit, 0-80 Amp, 48V DC

• The Electronic Specialties 315 Max Fuse Buddy Kit is designed to quickly measure current draw in Maxi fuse circuits for automotive, heavy-duty, marine, RV, and equipment electrical diagnostics. This Fuse Buddy tester measures from 0 to 80 amps at up to 48V DC with 0.1 amp resolution and +/- 2% reading accuracy. With the supplied adapters, the kit can also be used for MINI and ATC circuit testing, making it a versatile tool for troubleshooting high-current and smaller fuse circuits without guesswork.
• Features
  • Maxi Fuse Circuit Testing – Designed to test current draw in Maxi fuse circuits up to 80 amps.
  • 0-80 Amp Measurement Range – Covers a wide range of automotive and heavy-duty electrical applications.
  • 48V DC Capability – Suitable for compatible DC electrical circuits up to 48 volts.
  • MINI and ATC Adapter Compatibility – Supplied adapters allow use with MINI and ATC fuse circuits.
  • Accurate Current Readings – Provides 0.1 amp resolution with +/- 2% reading accuracy.
  • In-Line Fuse Circuit Testing – Connects in place of the fuse to help identify current draw and circuit problems.
  • Automotive and Heavy-Duty Use – Useful for cars, trucks, RVs, boats, heavy equipment, emergency vehicles, and service applications.

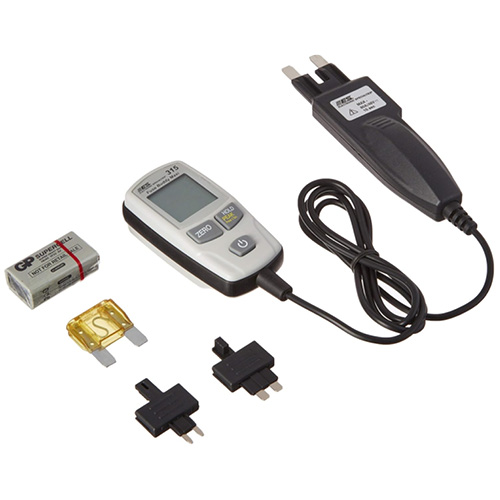

• Includes
  • Electronic Specialties 315 Max Fuse Buddy Tester
  • Adapters for MINI and ATC Circuit Testing
  • 20 Amp MAXI Fuse for Use with MINI and ATC Circuit Testing
• Specifications
  • Manufacturer: Electronic Specialties
  • Part Number: 315
  • Order Part Number: ES315
  • Product Type: Max Fuse Buddy Kit
  • Measurement Range: 0-80 Amp / 48V DC
  • Resolution: 0.1 Amp
  • Accuracy: +/- 2% Reading
  • Display Type: Analog
  • Fuse Circuit Compatibility: Maxi, MINI, and ATC
  • Harmonization Code: 90309088
  • Selling Unit: Kit
• Test Applications
  • Anti-lock brake circuits
  • Car stereo circuits
  • Branch power circuits
  • Rear window defogger circuits
  • Heavy-duty equipment circuits
  • Fire engine water pump circuits
  • Automotive, truck, RV, boat, and equipment electrical diagnostics
• The Electronic Specialties 315 Max Fuse Buddy Kit is also commonly referred to as a Maxi fuse tester, Fuse Buddy current tester, automotive fuse circuit tester, in-line amp tester, 80 amp fuse tester, DC circuit current tester, MINI and ATC fuse adapter tester, and Electronic Specialties ES315 Fuse Buddy Kit.

Q: What is the Electronic Specialties 315 used for?
A: It is used to test current draw in Maxi fuse circuits and, with supplied adapters, MINI and ATC fuse circuits.

Q: What is the measurement range of this Fuse Buddy Kit?
A: The Electronic Specialties 315 measures from 0 to 80 amps at up to 48V DC.

Q: Can this tester be used on MINI and ATC fuse circuits?
A: Yes. The kit includes adapters that allow it to work with MINI and ATC circuits.

Q: What is the accuracy of the ES315 Max Fuse Buddy Kit?
A: The listed accuracy is +/- 2% of the reading, with 0.1 amp resolution.
