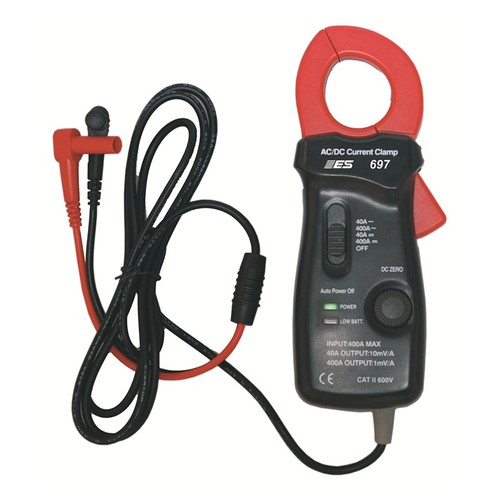

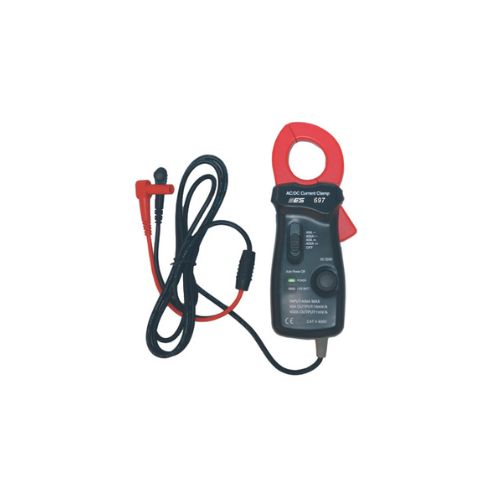

Electronic Specialties 697 DC/AC Current Probe, 0 to 400 Amp, 1.25" Jaw Opening

Electronic Specialties 697 DC/AC Current Probe, 0 to 400 Amp, 1.25" Jaw Opening

• The Electronic Specialties 697 DC/AC Current Probe is designed for measuring AC and DC current from 0 to 400 amps when used with a compatible digital multimeter, lab scope, or graphing meter. Its 1.25" jaw opening accommodates a range of conductors, while the 0.1 amp resolution supports automotive electrical testing, including starting, charging, and relative compression diagnostics.
• Features:
  • Measures AC and DC current from 0 to 400 amps.
  • Provides 0.1 amp measurement resolution.
  • Designed for use with compatible digital multimeters, lab scopes, and graphing meters.
  • Suitable for testing automotive starting and charging systems.
  • Can be used for relative compression testing when paired with a compatible lab scope or graphing meter.
  • Includes a storage case for protection and transport.
• Compatible Applications:
  • Automotive Starting System Testing
  • Automotive Charging System Testing
  • Relative Compression Testing
  • AC and DC Current Measurement
  • Digital Multimeter Testing
  • Lab Scope and Graphing Meter Diagnostics
• Specifications:
  • Manufacturer: Electronic Specialties
  • Part Number: 697
  • Order Part Number: ES697
  • MPN: 697
  • Product Type: DC/AC Current Probe
  • Current Measurement Range: 0 to 400 Amp AC/DC
  • Resolution: 0.1 Amp
  • Jaw Opening: 1.25"
  • System Compatibility: Digital Multimeter, Lab Scope, or Graphing Meter
  • Application: Automotive Electrical and Current Testing
  • Storage: Protective Case Included
  • Selling Unit: Each
• This item is also often referred to as an AC/DC current probe, 400 amp current clamp, automotive current probe, multimeter current clamp, and Electronic Specialties 697 probe.

Electronic Specialties manufactures automotive electrical diagnostic tools, multimeters, current probes, test leads, battery testers, and related equipment for professional technicians and service facilities.

Q: What current range can the Electronic Specialties 697 measure?
A: It is designed to measure AC and DC current from 0 to 400 amps with 0.1 amp resolution.

Q: What test equipment can be used with the ES 697?
A: It is designed for use with compatible digital multimeters, lab scopes, and graphing meters.

Q: Can the ES 697 be used for automotive diagnostics?
A: Yes. It can be used for starting and charging system testing and for relative compression testing when paired with compatible test equipment.

Q: What is the jaw opening size?
A: The current probe has a 1.25" jaw opening.
