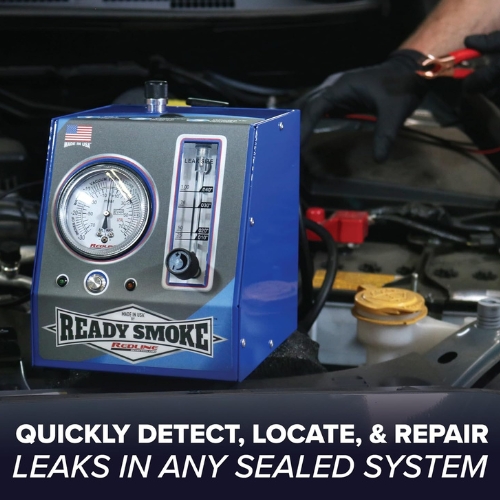

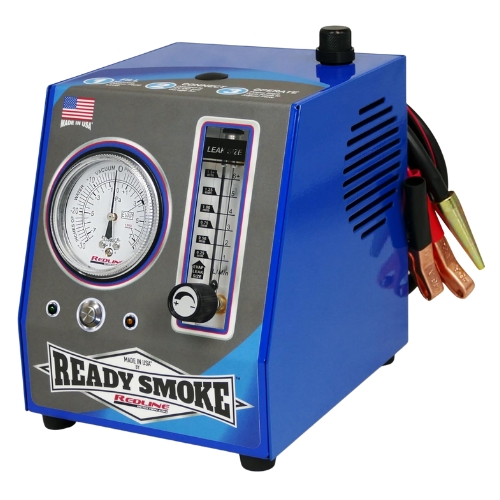

Redline Detection 95-0400 ReadySmoke Leak Detector Diagnostic Smoke Machine

Redline Detection 95-0400 ReadySmoke Leak Detector Diagnostic Smoke Machine

• The Redline Detection 95-0400 ReadySmoke Leak Detector is a compact, professional-grade smoke machine designed for identifying leaks in vacuum, EVAP, intake, exhaust, and other sealed systems on automotive and light-duty engines. It generates visible vapor using compressed shop air and Redline's OEM-approved fluid.
• Features:
  • Optimized for low-pressure diagnostics including EVAP, vacuum, intake, and exhaust systems.
  • Operates using shop air-no internal pump or compressor required.
  • Lightweight, portable design for maneuverability in tight service bays.
  • Simple dipstick-style fill port enables quick fluid servicing and inspection.
  • Produces dense, dye-free vapor for accurate visual leak tracing.
• Specifications:
  • Manufacturer: Redline Detection, LLC
  • Model / Part Number: 95-0400 (ReadySmoke)
  • Power Supply: 12 V DC
  • Output Pressure: 0.5 PSI typical (?13 in. H?O) in vapor mode
  • Operating Temperature Range: 0 degreesF to 140 degreesF (-17 degreesC to 60 degreesC)
  • Application / System Compatibility: Ideal for detecting leaks in EVAP systems, intake manifolds, vacuum circuits, EGR lines, exhaust systems, and seals.
• Also known as Redline ReadySmoke 95-0400, ReadySmoke diagnostic leak detector, Redline smoke machine 95-0400, and RDL 95-0400 vapor diagnostic tool.

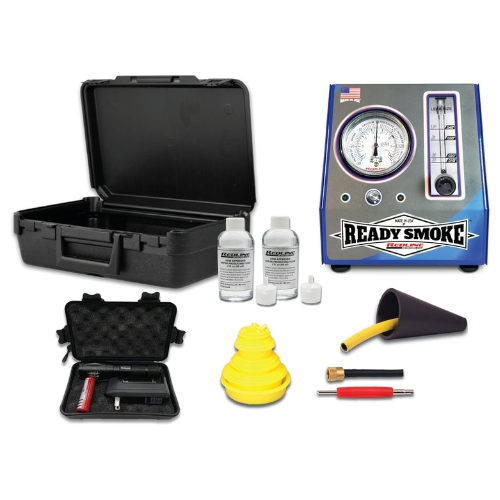

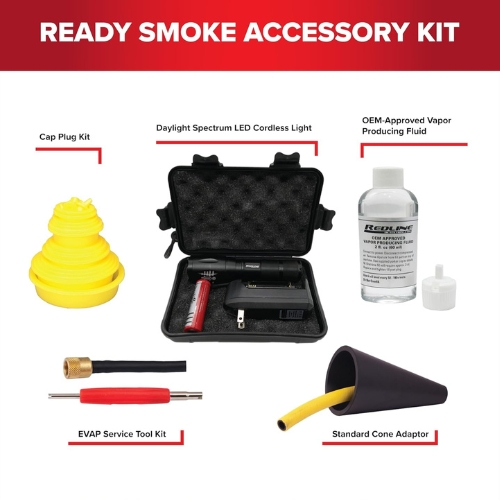

The Redline Detection 95-0400 ReadySmoke provides fast, precise leak detection in a portable, shop-ready design. By combining compressed air operation, clear vapor output, and a complete accessory kit, it's ideal for technicians performing quick diagnostics on sealed systems.


Q: Can this tool test turbo or boost systems?
A: No - the ReadySmoke is designed for low-pressure systems such as EVAP, vacuum, and intake diagnostics. It is not intended for boosted applications.


Q: Does it need an external air source?
A: Yes - the ReadySmoke requires a connection to a compressed shop air supply. It does not include an internal compressor.


Q: Is the vapor visible?
A: Yes - the ReadySmoke produces dense, dye-free vapor that makes even small leaks easy to locate.
