Tool Aid 53770 Basic Fuel Injection Pressure Tester with Quick Coupler

Tool Aid 53770 Basic Fuel Injection Pressure Tester with Quick Coupler

• The Tool Aid 53770 Basic Fuel Injection Pressure Tester with Quick Coupler is a reliable starter kit for diagnosing fuel injection pressure issues on GM and Chrysler vehicles. Designed for basic fuel injection system testing, this kit includes a large Schrader valve test adapter, quick coupler, and a 2-1/2" dual-scale pressure gauge that reads up to 100 PSI and 7 BAR. Its expandable quick-coupler design allows technicians to add additional Tool Aid adapters for broader vehicle coverage.
• Features
  • GM and Chrysler Coverage – Includes the 53908 Large Schrader Valve Test Adapter for use on GM and Chrysler fuel injection systems.
  • Expandable Starter Kit – Can be expanded with additional Tool Aid quick-coupler adapters for wider application coverage.
  • Dual-Scale Pressure Gauge – 2-1/2" diameter gauge reads up to 100 PSI and 7 BAR for easy fuel pressure measurement.
  • Quick Coupler Design – Allows fast adapter changes and convenient connection during diagnostic work.
  • Hang-Up Hook – Gauge includes a hook for easier viewing and positioning during testing.
  • Instructions Included – Comes with operating instructions for proper setup and use.

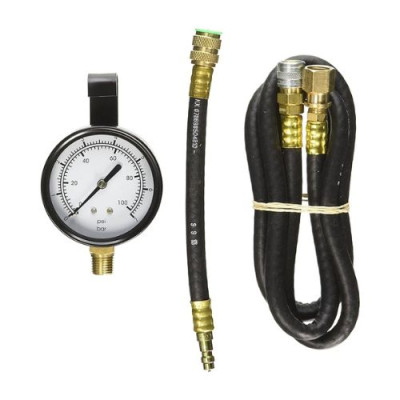

• Includes
  • 53908 Large Schrader Valve Test Adapter
  • 2-1/2" Diameter Dual-Scale Pressure Gauge
  • Quick Coupler
  • Hang-Up Hook
  • Instructions
• Specifications
  • Manufacturer: Tool Aid
  • Part Number: 53770
  • Order Part Number: SG53770
  • Product Type: Fuel Injection Pressure Tester
  • Tester Type: Basic Pressure Tester
  • Gauge Diameter: 2-1/2"
  • Pressure Range: 0 to 100 PSI / 0 to 7 BAR
  • Adapter Included: 53908 Large Schrader Valve Test Adapter
  • Connection Type: Quick Coupler
  • Used On: GM and Chrysler Basic Fuel Injection Systems
  • Country of Origin: United States
  • Harmonization Code: 90262000
  • Default Selling Unit: EA
• Applications
  • Fuel injection pressure testing
  • GM fuel system diagnostics
  • Chrysler fuel system diagnostics
  • Basic automotive fuel pressure troubleshooting
  • Repair shop and technician diagnostic use
• The Tool Aid 53770 Fuel Injection Pressure Tester is also commonly referred to as a fuel pressure tester, GM fuel injection tester, Chrysler fuel pressure gauge, Schrader valve fuel tester, quick coupler fuel pressure kit, and basic fuel system diagnostic tester.

Q: What vehicles is the Tool Aid 53770 designed for?
A: It is designed for basic fuel injection pressure testing on GM and Chrysler vehicles.

Q: What pressure range does the gauge measure?
A: The dual-scale gauge measures up to 100 PSI and 7 BAR.

Q: Can this kit be expanded for other applications?
A: Yes. The quick-coupler system allows additional Tool Aid adapters to be added for broader vehicle coverage.

Q: What adapter is included with the kit?
A: The kit includes the 53908 Large Schrader Valve Test Adapter for GM and Chrysler applications.
