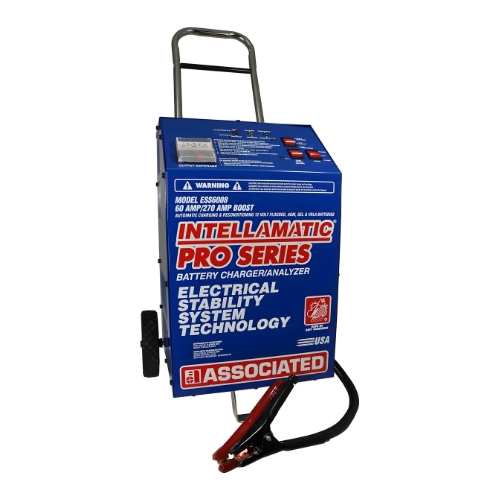

Associated ESS6008 Battery Charger, Steel Wheeled Intellamatic, 12 Volt 60 Amp Continuous with 270 Amp Crank Assist

Associated ESS6008 Battery Charger, Steel Wheeled Intellamatic, 12 Volt 60 Amp Continuous with 270 Amp Crank Assist

• The Associated ESS6008 Battery Charger is a steel wheeled Intellamatic charger for 12 volt battery systems. It delivers 60 amps continuous charge, 270 amps crank assist, includes a power supply mode up to 70 amps, and supports multiple battery types including AGM, gel cell, flooded, and spiral cell.
• Features: <
  • Intellamatic automatic operation with microprocessor control for safe charging of 12 volt battery types.
  • Power supply mode that provides clean 13.7-13.8 volts DC output for extended service procedures or electronic re-flashes.
  • Deep discharge recovery mode and diagnostics for weak or defective batteries.
  • Polarity-protected clamps and reverse hookup protection for user safety.
• Specifications:
  • Manufacturer: Associated Equipment
  • Part Number / Model: ESS6008
  • Material: Steel housing
  • Continuous Charge Current: 60 amps @ 12 volts
  • Crank Assist Current: 270 amps @ 12 volts
  • Power Supply Output: Up to 70 amps in supply mode at approx. 13.8 volts DC
  • Supported Battery Types: AGM, Gel Cell, Flooded, Spiral Cell
  • System/Application: Battery charging, start assist, diagnostics, and power supply functions in automotive and fleet service environments
• The Associated ESS6008 may also be called Intellamatic 12V charger, 60 amp steel wheel charger, 270A start assist charger, multi-battery type automatic charger, power supply mode battery charger.

The Associated ESS6008 Steel Intellamatic Charger offers strong continuous output, versatile battery compatibility, and a robust start assist capability, making it well suited for automotive shops, fleet maintenance, and heavy duty battery service tasks.

Q: What is the crank assist rating?
A: The ESS6008 provides 270 amps crank assist at 12 volts.

Q: What is the power supply mode on this charger?
A: It offers a power supply mode up to 70 amps with ~13.8 volts DC nominal for extended electronic work or battery service functions.

Q: Which battery types are supported?
A: It supports multiple types including AGM, gel cell, flooded lead-acid, spiral cell batteries.
