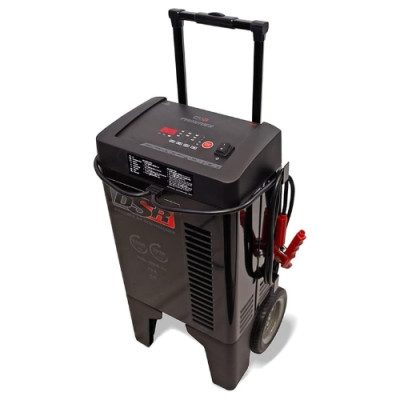

Schumacher DSR123 12V/24V 250 Amp ProSeries Wheeled Battery Charger and Engine Starter

Schumacher DSR123 12V/24V 250 Amp ProSeries Wheeled Battery Charger and Engine Starter

• The Schumacher DSR123 is a ProSeries wheeled battery charger and engine starter designed for both 12-volt and 24-volt systems. It offers multi-stage automatic charging, boost modes, and high current cranking capacity.
• Features:
  • Microprocessor controlled multi-stage charging automatically adjusts output for safety and battery health
  • Float or maintain mode holds battery at optimal charge once full
  • Boost mode to revive deeply discharged batteries with higher current bursts
  • Reverse polarity protection and thermal overload safeguards ensure safe operation
• Specifications:
  • Manufacturer: Schumacher Electric
  • Model / Part Number: DSR123
  • Input Voltage: 120 VAC
  • Output Voltage: 12 V / 24 V selectable
  • Output Current (continuous): 4 / 15 A for 12V / 24V
  • Output Current (crank / engine start): 250 A at 12V, 150 A at 24V
  • Boost Mode Range: 10-50 A (12V), 10-30 A (24V)
  • System Compatibility & Application: Ideal for charging and starting vehicle, truck, RV, or industrial batteries using 12V or 24V battery systems
• Alternate names: Schumacher DSR123 battery charger, DSR123 ProSeries charger starter, Schumacher 12/24V 250A wheeled charger, DSR123 engine start charger.

The Schumacher DSR123 ProSeries wheeled charger offers a professional solution for battery charging and engine starting across 12-volt and 24-volt applications. Its digital control, safety features, and high cranking output make it a robust choice for workshop and fleet use.

Q: What battery chemistries does it support?
A: It supports standard flooded, AGM, gel, and deep cycle batteries.

Q: How much cranking current does it provide?
A: It provides up to 250 amps at 12 V and 150 amps at 24 V for engine starting.

Q: Does it offer memory saver or vehicle electronics support?
A: The published specification pages don't list a memory saver port for DSR123; it includes advanced charging and boost modes.
